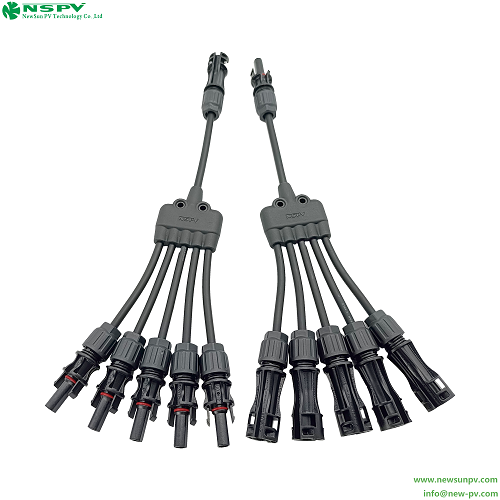

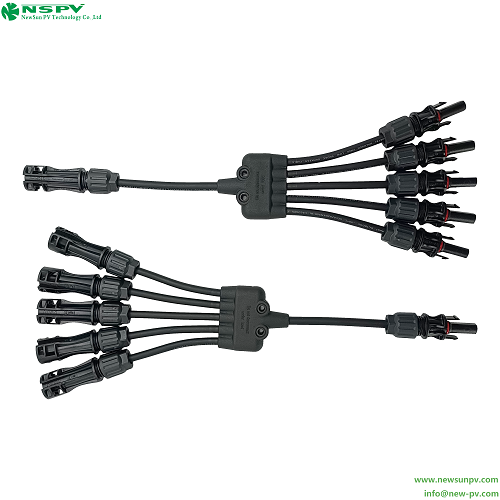

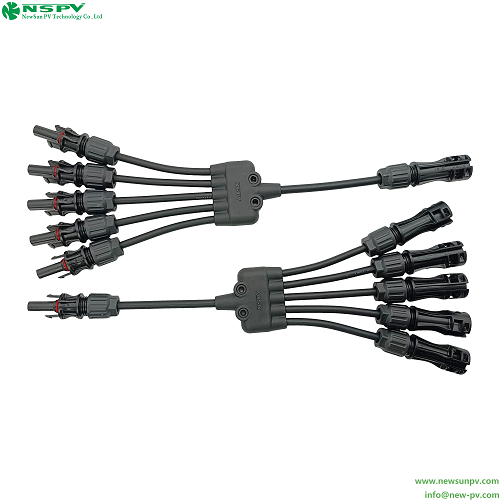

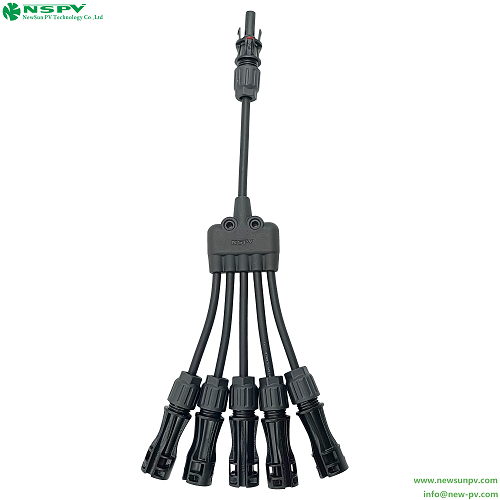

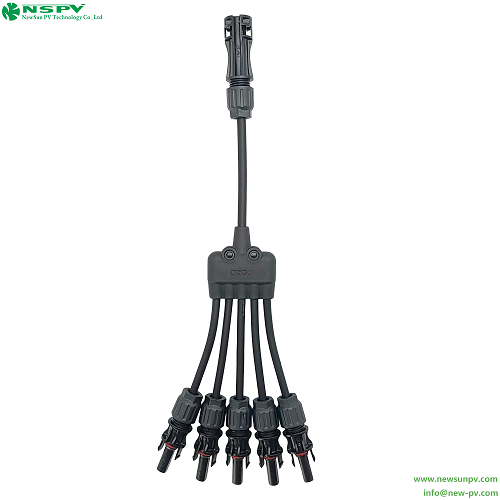

TUV Certified 5 To 1 Solar Y Connectors Parallel Solar Panels Connector 1500V IP68 Waterproof Solar Wiring Harness
Product Details:
- Product Type Other
- Material PPE/TPE/PA(Insulation material)
- Operating Temperature -40-+85 Celsius (oC)
- Output Voltage 1000/1500 Volt (V)
- Color Black
X
TUV Certified 5 To 1 Solar Y Connectors Parallel Solar Panels Connector 1500V IP68 Waterproof Solar Wiring Harness Price And Quantity
- 100 Set
TUV Certified 5 To 1 Solar Y Connectors Parallel Solar Panels Connector 1500V IP68 Waterproof Solar Wiring Harness Product Specifications
- -40-+85 Celsius (oC)
- Black
- PPE/TPE/PA(Insulation material)
- 1000/1500 Volt (V)
- Other
TUV Certified 5 To 1 Solar Y Connectors Parallel Solar Panels Connector 1500V IP68 Waterproof Solar Wiring Harness Trade Information
- EXW
- 10000 Set Per Month
- Days
- Yes
- Contact us for information regarding our sample policy
- Standard packing
- All India
Product Description
1500VDC Solar Cable Assembly- Insulation material: PPE/TPE/PA; Safety degree: II;
- Rated voltage: 1500VDC; Flame class: UL94-V0;
- Rated Impulse voltage: 16KV; Installation type: Outdoor,UV resistant(F1);
- Test voltage: 8kV(50Hz,1min); Ambient temperature range: -40-+85(IEC);
- Contact resistance: less than 0.25 mohm; Suitable cable cross sections: 1.5-10mm2/16-8AWG;
- Contact material: Copper,Tin plated; Connecting system: Crimp connection;
- Degree of protection: IP68(1m,1H); Upper limiting temperature: 110(IEC);
- Overvoltage category/Pollution degree: CATIII/2; Regulatory approval: TUV/CE(IEC62852:2014).
