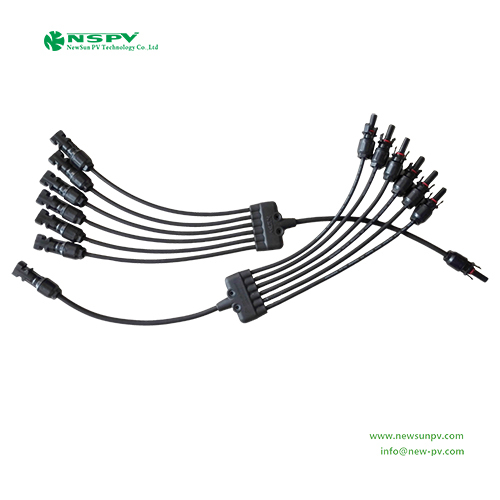

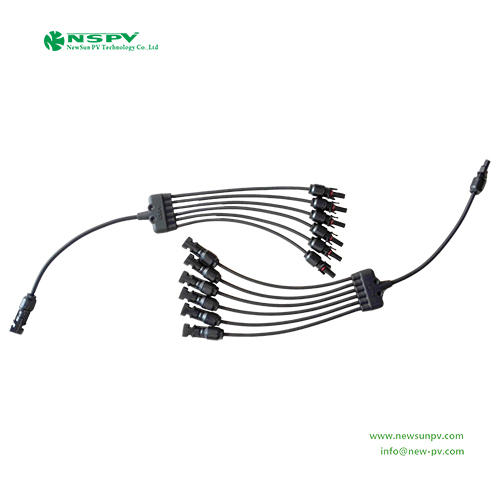

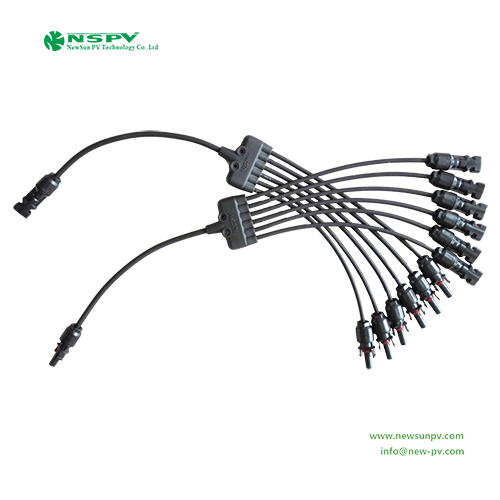

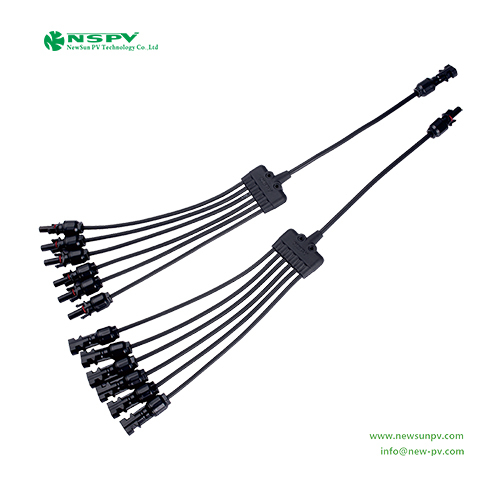

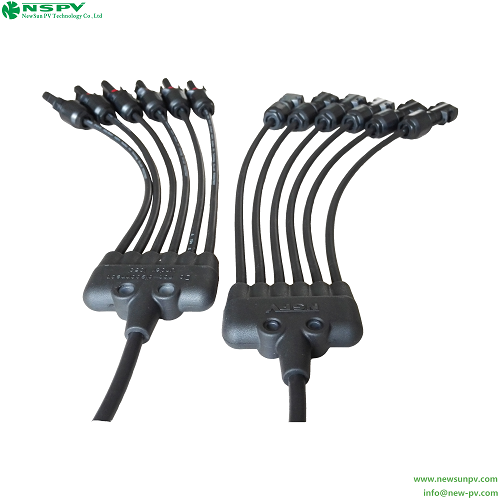

NSPV Solar Panel Parallel Connectors 6 To 1 Type Y Connector Solar Wiring Harness PV Cable Harness
Product Details:
- Product Type Other
- Material PPE/TPE/PA(Insulation material)
- Operating Temperature -40-+85 Celsius (oC)
- Output Voltage 1000/1500 Volt (V)
- Color Black
X
NSPV Solar Panel Parallel Connectors 6 To 1 Type Y Connector Solar Wiring Harness PV Cable Harness Price And Quantity
- 100 Set
NSPV Solar Panel Parallel Connectors 6 To 1 Type Y Connector Solar Wiring Harness PV Cable Harness Product Specifications
- Other
- PPE/TPE/PA(Insulation material)
- Black
- 1000/1500 Volt (V)
- -40-+85 Celsius (oC)
NSPV Solar Panel Parallel Connectors 6 To 1 Type Y Connector Solar Wiring Harness PV Cable Harness Trade Information
- EXW
- 10000 Set Per Month
- Days
- Yes
- Standard packing
- All India
Product Description
Solar panel parallel connectors 6 to 1 type from NSPV y connector solar
- Insulation material: PPE/TPE/PA; Safety degree: II;
- Rated voltage:1500VDC;Flame class:UL94-V0;
- Rated Impulse voltage:16KV;Installation type:Outdoor,UV resistant(F1);
- Test voltage:8kV(50Hz,1min);Ambient temperature range:-40-+85(IEC);
- Contact resistance:less than 0.25 mohm;Suitable cable cross sections:1.5-10mm2/16-8AWG;
- Contact material:Copper,Tin plated;Connecting system:Crimp connection;
- Degree of protection:IP68(1m,1H);Upper limiting temperature:110(IEC);
- Overvoltage category/Pollution degree:CATIII/2;Regulatory approval:TUV/CE(IEC62852:2014).
