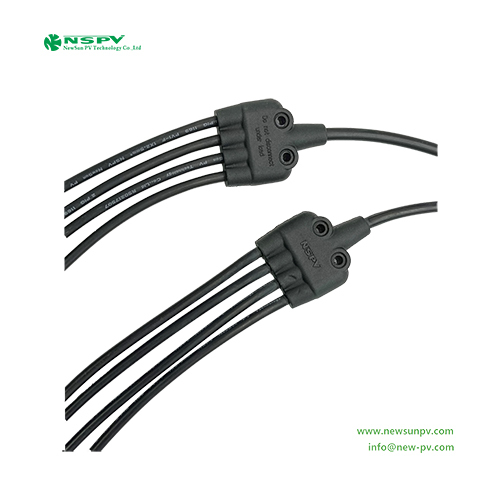

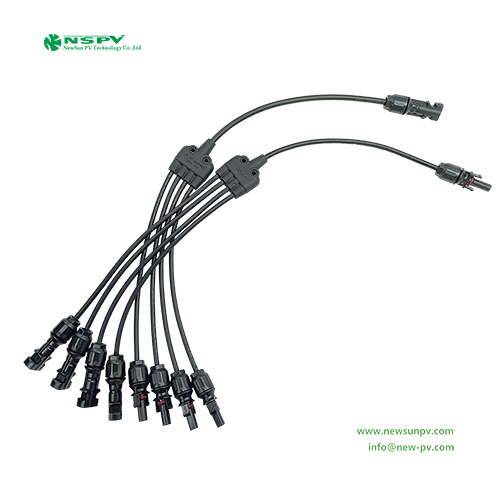

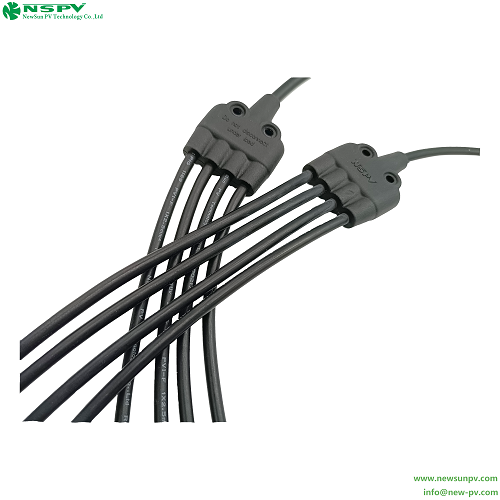

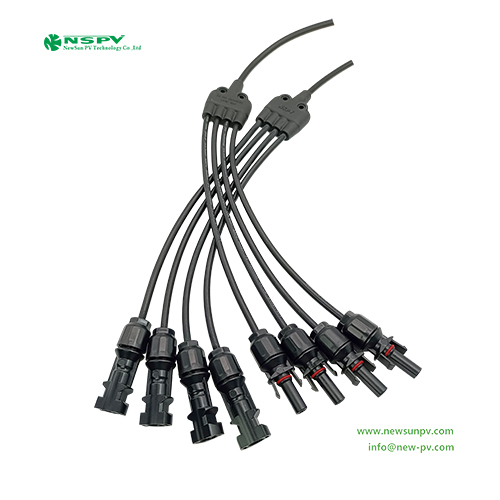

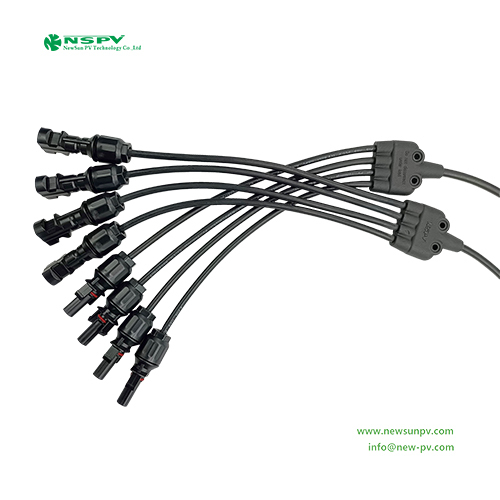

NSPV PV Cable assembly 4 In 1 Solar Panel Y Type Branch Connectors Solar Wiring Harness
Product Details:
- Material PPE/TPE(Insulation material)
- Operating Temperature -40-+85 Celsius (oC)
- Output Voltage 1000 Volt (V)
- Color Black
X
NSPV PV Cable assembly 4 In 1 Solar Panel Y Type Branch Connectors Solar Wiring Harness Price And Quantity
- 100 Set
NSPV PV Cable assembly 4 In 1 Solar Panel Y Type Branch Connectors Solar Wiring Harness Product Specifications
- -40-+85 Celsius (oC)
- Black
- 1000 Volt (V)
- PPE/TPE(Insulation material)
NSPV PV Cable assembly 4 In 1 Solar Panel Y Type Branch Connectors Solar Wiring Harness Trade Information
- EXW
- 10000 Set Per Month
- Days
- Yes
- Sample costs shipping and taxes has to be paid by the buyer
- Standard packing or according to customer's request.
- All India
Product Description
1000VDC Solar Cable Assembly- Insulation material:PPE/TPE/PA;Safety degree:II;
- Rated voltage:1000VDC;Flame class:UL94-V0;
- Rated Impulse voltage:16KV;Installation type:Outdoor,UV resistant(F1);
- Test voltage:6kV(50Hz,1min);Ambient temperature range:-40-+85(IEC);
- Contact resistance:less than 0.25 mohm;Suitable cable cross sections:1.5-10mm2/16-8AWG;
- Contact material:Copper,Tin plated;Connecting system:Crimp connection;
- Degree of protection:IP68(1m,1H);Upper limiting temperature:110(IEC);
- Overvoltage category/Pollution degree:CATIII/2;Regulatory approval:TUV/CE(IEC62852:2014).
