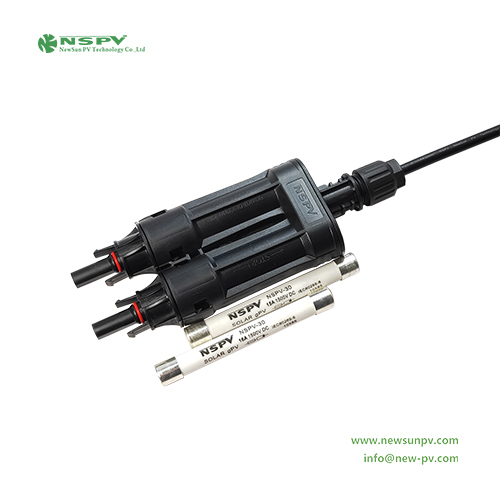

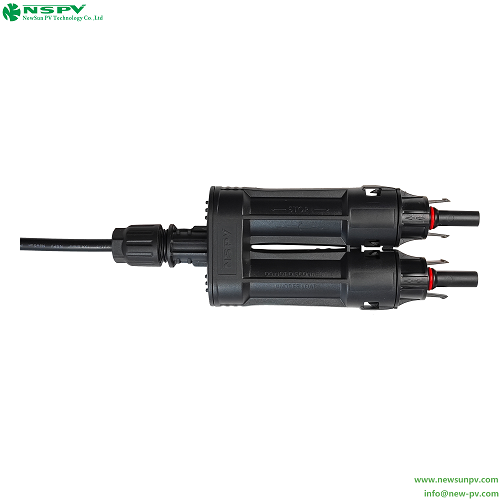

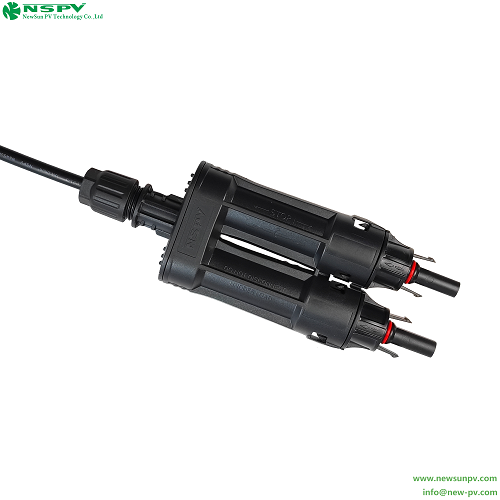

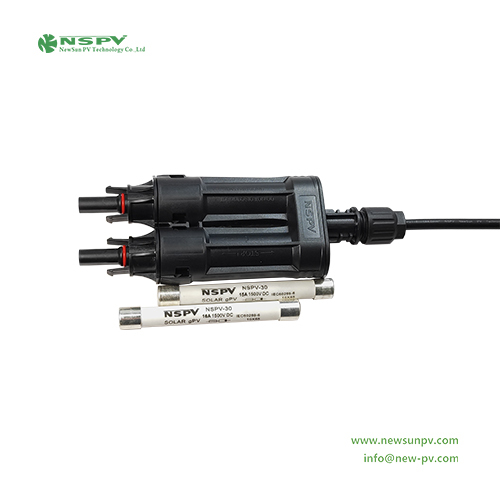

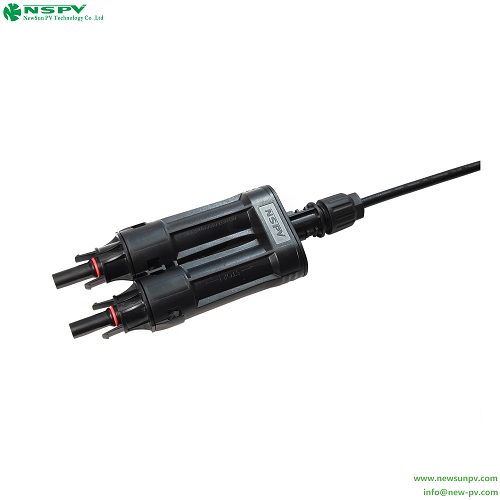

PV 4FBFC00-15 1500VDC 60A TUV Certified Solar Branch Fuse Connectors For Solar Energy System Protection

Product Details:

Product Type Other
Material PPE/PA(Insulation material)
Operating Temperature -40-+85 Celsius (oC)
Output Voltage 1500 Volt (V)
Size 15.6*2.5*2.2
Dimension (L*W*H) 15.6*2.5*2.2 Centimeter (cm)
Color Black
Share Your Product:

7.26 USD ($)/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

PV 4FBFC00-15 1500VDC 60A TUV Certified Solar Branch Fuse Connectors For Solar Energy System Protection Price And Quantity

Price 7.26 USD ($)/Piece
Minimum Order Quantity 100 Piece

PV 4FBFC00-15 1500VDC 60A TUV Certified Solar Branch Fuse Connectors For Solar Energy System Protection Product Specifications

Material PPE/PA(Insulation material)
Output Voltage 1500 Volt (V)
Size 15.6*2.5*2.2
Product Type Other
Operating Temperature -40-+85 Celsius (oC)
Color Black
Dimension (L*W*H) 15.6*2.5*2.2 Centimeter (cm)

PV 4FBFC00-15 1500VDC 60A TUV Certified Solar Branch Fuse Connectors For Solar Energy System Protection Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Month
Delivery Time Days
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Standard packing
Main Domestic Market All India
Certifications TUV

Product Description

4FBFC15 2To1 Fuse Connector

Insulation Material PPEPA

Rated Voltage1500V DC

Rated CurrentWithout Fuse MaXInput30AMaxOutput60A

Maximum Voltage 8kV

Contact Resistance025m

Contact Material CopperTin Plated

Degree Of Protection IP68

Product Color Black

Fuse Specification 1A2A3A35A4A5A6A8A10A12A15A16A20A25A30A32A35A40A45A50A

Flame Class UL94V0

Safety Degree II

Regulatory Approval TUVCE

Ambient Temperature 4085IEC

Suitable For Fuse Size10851485

Suitable Cable Cross Sections 2510mm148AWG

Upper Limiting Temperature 110IEC
