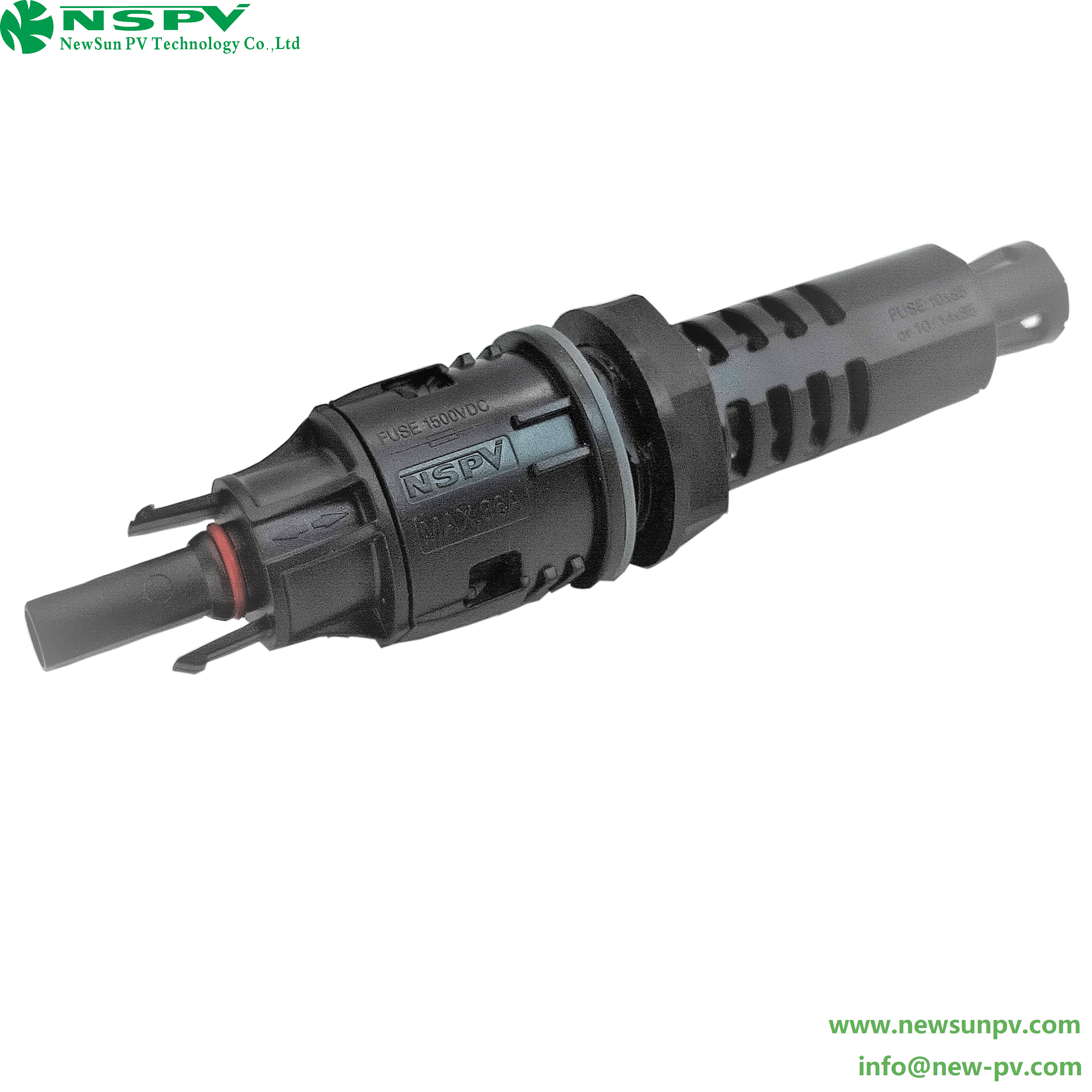

1500VDC Solar Panel Fuse Connectors IP68 Waterproof 50A PV Panel Fuse Connector Female End

Product Details:

Product Type Other
Material PPE/PA(Insulation material)
Operating Temperature -40-+85 Celsius (oC)
Max Voltage 1575 Volt (V)
Output Voltage 1500 Volt (V)
Size 13.3*2.9*2.9
Dimension (L*W*H) 13.3*2.9*2.9 Centimeter (cm)
Share Your Product:

2.68 USD ($)/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

1500VDC Solar Panel Fuse Connectors IP68 Waterproof 50A PV Panel Fuse Connector Female End Price And Quantity

Minimum Order Quantity 1000 Piece
Price 2.68 USD ($)/Piece

1500VDC Solar Panel Fuse Connectors IP68 Waterproof 50A PV Panel Fuse Connector Female End Product Specifications

Operating Temperature -40-+85 Celsius (oC)
Material PPE/PA(Insulation material)
Color Black
Max Voltage 1575 Volt (V)
Dimension (L*W*H) 13.3*2.9*2.9 Centimeter (cm)
Output Voltage 1500 Volt (V)
Size 13.3*2.9*2.9
Weight 0.075 Kilograms (kg)
Product Type Other

1500VDC Solar Panel Fuse Connectors IP68 Waterproof 50A PV Panel Fuse Connector Female End Trade Information

FOB Port EXW
Supply Ability 1000000 Piece Per Year
Delivery Time Days
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Standard packing
Main Domestic Market All India
Certifications TUV

Product Description

High Quality Metallic Material 50A Solar Panel PV In-line Fuse Connector Female End

Product Specifications:

Insulation material:PPE/PA

Fuse Specification:1A-50A
Rated current(Without fuse):50A
Safety degree:II
Rated voltage:1500VDC
Flame class:UL94-V0
Maximum voltage(With fuse):1575V
Ambient temperature range:-40ï-+85ï(IEC)
Contact resistance: less than0.25 mohm
Upper limiting temperature:110(IEC)
Contact material:Copper,Tin plated
Suitable cable cross sections:2.5-16mmï/14-6AWG
Degree of protection:IP68(1m,1H)
Suitable for fuse size(mm):10X85 or 10/14X85
Rated Impulse voltage: 12KV
Regulatory approval:TUV, CE
