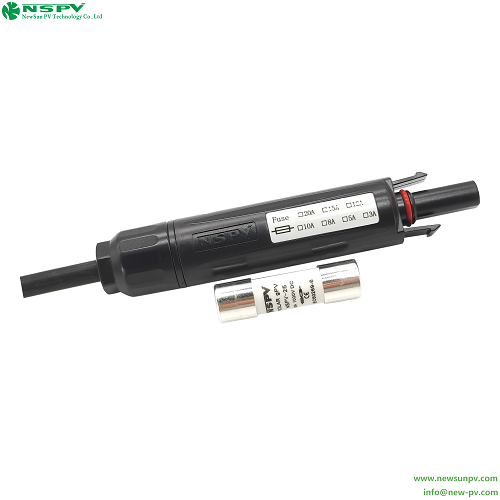

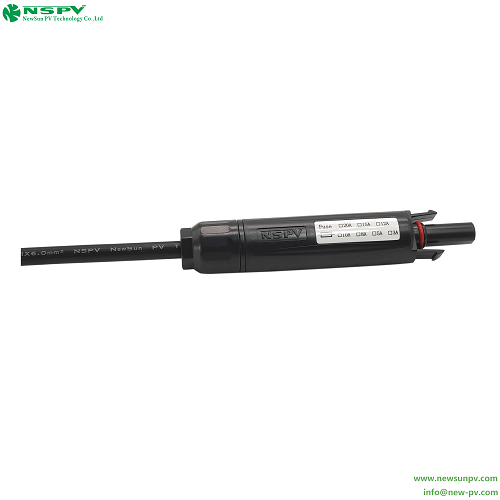

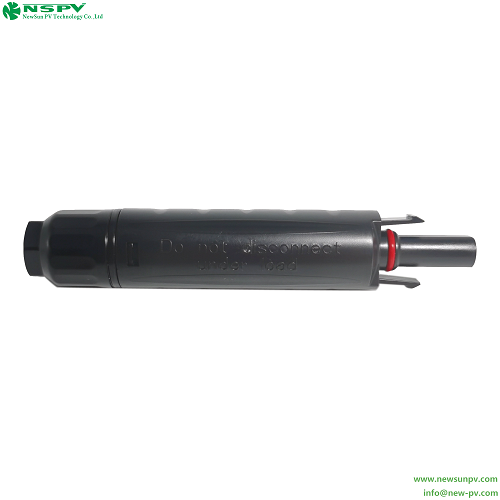

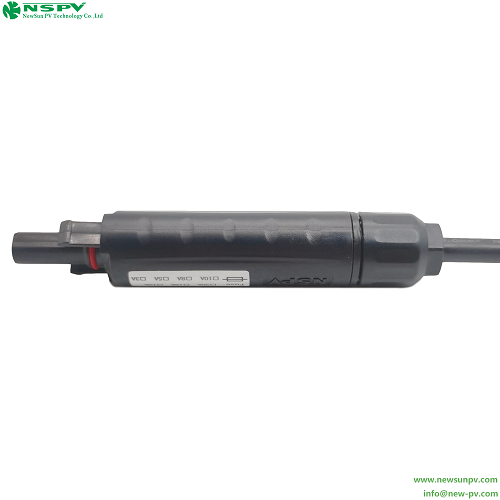

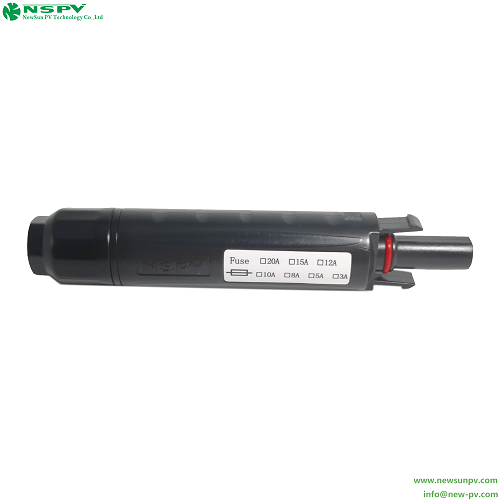

Waterproof PV4.0 Solar Fuse Connectors 1000VDC PV Inline Fuse Connectors For Solar System Protection

Product Details:

Product Type Other
Material PPE/PA(Insulation material)
Operating Temperature -40-+85 Celsius (oC)
Output Voltage 1000 Volt (V)
Color Black
Share Your Product:

3.19 USD ($)/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

Waterproof PV4.0 Solar Fuse Connectors 1000VDC PV Inline Fuse Connectors For Solar System Protection Price And Quantity

Price 3.19 USD ($)/Piece
Minimum Order Quantity 500 Piece

Waterproof PV4.0 Solar Fuse Connectors 1000VDC PV Inline Fuse Connectors For Solar System Protection Product Specifications

Material PPE/PA(Insulation material)
Output Voltage 1000 Volt (V)
Product Type Other
Color Black
Operating Temperature -40-+85 Celsius (oC)

Waterproof PV4.0 Solar Fuse Connectors 1000VDC PV Inline Fuse Connectors For Solar System Protection Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Week
Delivery Time Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Domestic Market All India

Product Description

PV 4.0 Fuse Connector 4F1-4F3

Insulation material:PPE/PA;Over voltage category/Pollution degree:CATIII/2;
Rated current(Without fuse):30A;Safety degree:II;
Rated current(With fuse):1A,2A,3.5A,4A,5A,8A,10A,12A,15A,20A,25A,30A;
Flame class:UL94-V0;Rated voltage:1000VDC;
Insertion force/Withdrawal force:less than 50N / more than 50N;
Test voltage:6kV(50Hz,Imin);Ambient temperature range:-40-+85(IEC);
Typical contact resistance:less than 0.25 mohm;Upper limiting temperature:110(IEC);
Contact material:Copper,Tin plated;Connecting system:Crimp connection;
Degree of protection:IP67;Nut cap locking force:1.5-1.8Nm.
