PV 4 To 2 Solar Y Connectors Solar Wiring Harness Solar Panel Parallel Connectors

Product Description

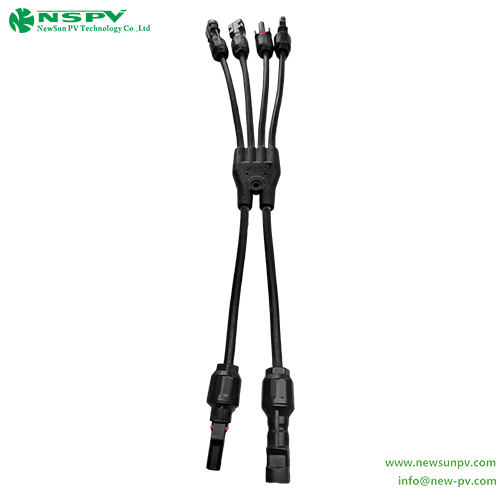

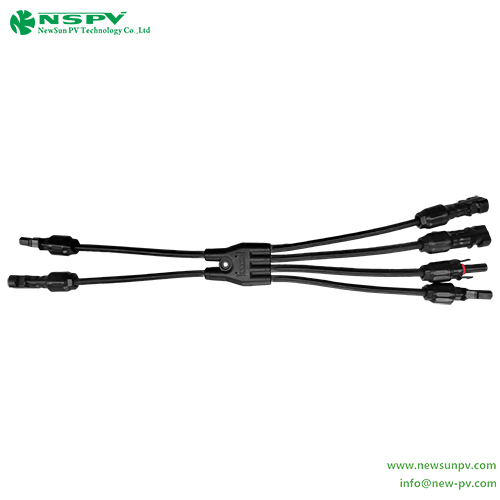

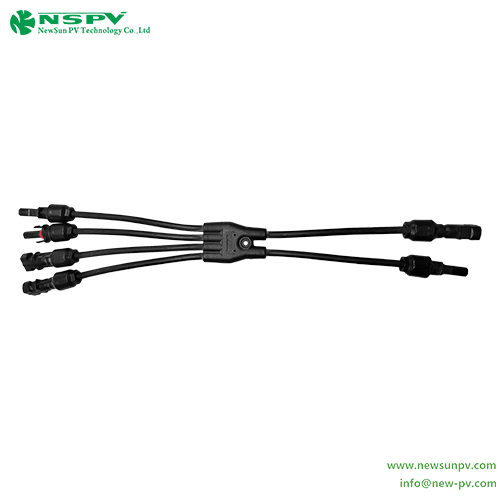

4 In 2 Pv Solar Assembly Connector

Leveraging on our immense market experience, we have emerged as an eminent exporter and manufacturer of PV Solar 4 in 2 Assembly Connector.

This connector is very robust and provides excellent connection of cables for efficient use.

Our cable connector is able to handle varying pressure and have temperature from the system.

This assembly connector is flawlessly fabricated in compliance with industry parameters.

Customers can avail from us our array of varying sizes and designs of this PV solar 4 in 2 assembly connector at market leading range of prices.

1500VDC Solar Cable Assembly

Product Specifications:

• Insulation material:PPE/TPE/PA;
• Rated voltage:1500VDC;
• Rated Impulse voltage:16kV;
• Test voltage:8kV(50Hz,1min);
• Contact resistance:less than 0.25mOhm;
• Contact material:Copper,Tin plated;
• Degree of protection:IP68(1m,1H);
• Overvoltage category/Pollution degree:CATIII/2;
• Safety degree:II;
• Flame class:UL94-V0;
• Installation type:Outdoor,UV resistant(F1);
• Ambient temperature range:-40 degrees Celsius-+85 degrees Celsius(IEC);
• Upper limiting temperature:110 degrees Celsius(IEC);
• Suitable cable cross sections:1.5-10mmsq./16-8AWG;
• Connecting system:Crimp connection;
• Regulatory approval:TUV/CE(IEC62852:2014).
