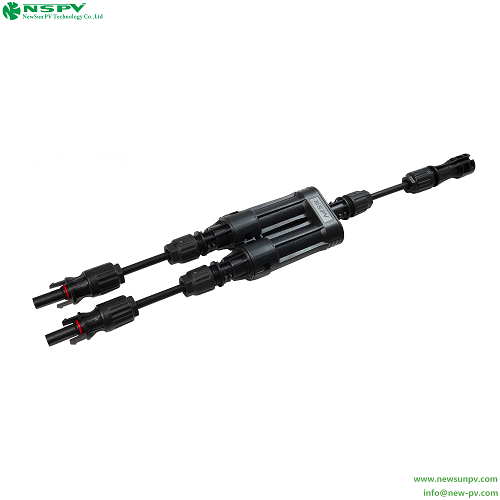

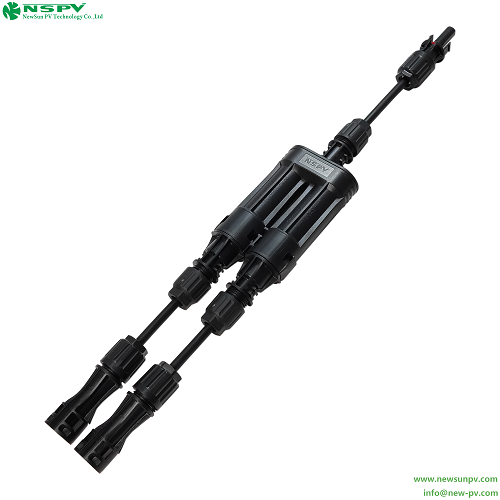

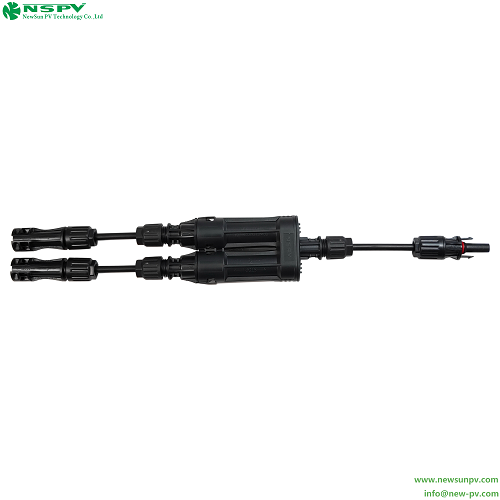

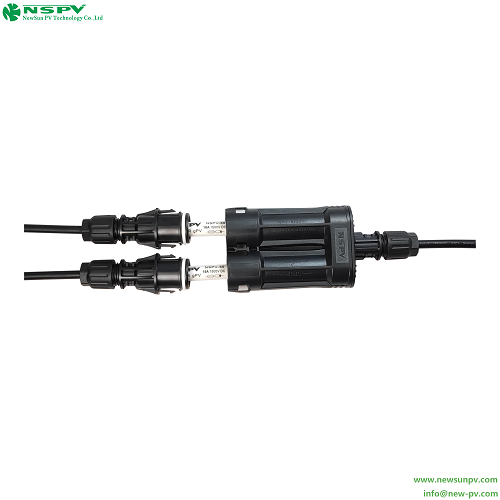

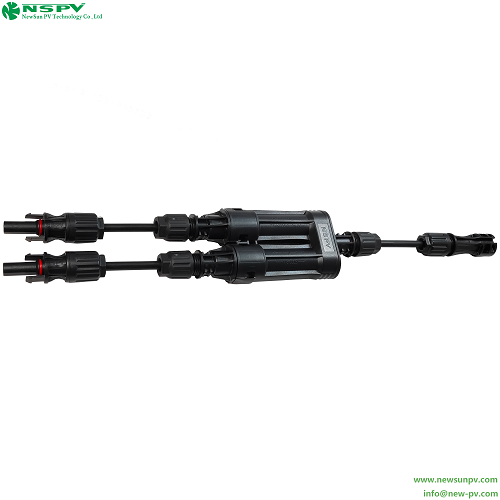

4FBCC00-15 TUV Certified Waterproof 2 to 11500VDC 60A Solar Branch Fuse Connectors For Solar Energy System

Product Details:

Product Type Other
Material PPE/PA(Insulation material)
Operating Temperature -40-+85 Celsius (oC)
Output Voltage 1500 Volt (V)
Size 16.3*2.5*2.2
Dimension (L*W*H) 16.3*2.5*2.2 Centimeter (cm)
Color Black
Share Your Product:

7.26 USD ($)/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

4FBCC00-15 TUV Certified Waterproof 2 to 11500VDC 60A Solar Branch Fuse Connectors For Solar Energy System Price And Quantity

Minimum Order Quantity 100 Piece
Price 7.26 USD ($)/Piece

4FBCC00-15 TUV Certified Waterproof 2 to 11500VDC 60A Solar Branch Fuse Connectors For Solar Energy System Product Specifications

Output Voltage 1500 Volt (V)
Size 16.3*2.5*2.2
Product Type Other
Operating Temperature -40-+85 Celsius (oC)
Material PPE/PA(Insulation material)
Color Black
Dimension (L*W*H) 16.3*2.5*2.2 Centimeter (cm)

4FBCC00-15 TUV Certified Waterproof 2 to 11500VDC 60A Solar Branch Fuse Connectors For Solar Energy System Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Month
Delivery Time Days
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Standard packing
Main Domestic Market All India
Certifications TUV

Product Description

1500VDC 2in1 solar inline fuse connector

Product Specifications:

Insulation material:PPE/PA;
Rated current(Without fuse):Max. Input:30A, Max. Output:60A;
Rated voltage:1500VDC;
Maximum voltage:8kV;
Contact resistance:less than 0.25mOhm;
Contact material:Copper,Tin plated;
Degree of protection:IP68;
Rated Impulse voltage:16KV;
Fuse Specification:1A,2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,16A,20A,25A,30A,32A,35A,40A,45A,50A;
Safety degree:II;
Flame class:UL94-V0;
Ambient temperature range:-40 degrees Celsius-+85 degrees Celsius(IEC);
Upper limiting temperature:110 degrees Celsius(IEC);
Suitable cable cross sections:4-10sqmm cable;
Suitable for fuse size(mm):10X85 or 10/14X85;
Regulatory approval:TUV,CE(EN60269/EN62208).

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Fuse Connector' category

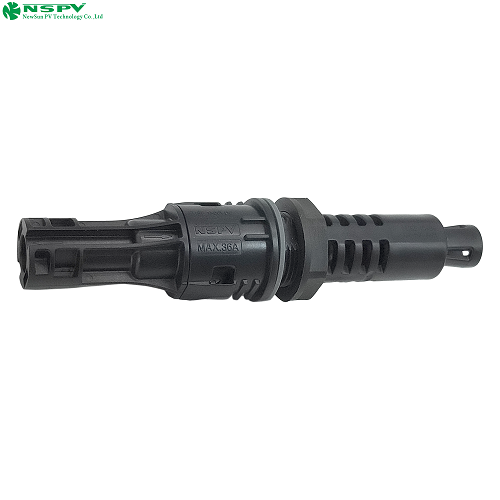

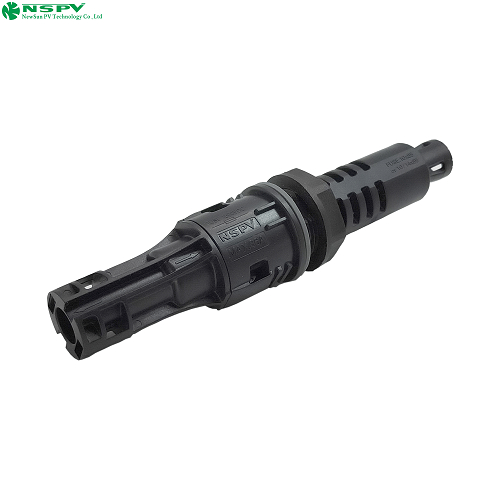

1500VDC 50A Solar Panel Fuse Connectors Male Connector IP68 Waterproof With TUV Certificate For Combiner Box Price : 2.68 USD ($)/Piece Minimum Order Quantity : 1000 Output Voltage : 1500 Volt (V) Operating Temperature : 40+85 Celsius (oC) Product Type : Other Size : 13.9*2.9*2.9 Dimension (L*W*H) : 13.9*2.9*2.9 Centimeter (cm) Color : Black Material : PPE/PA(Insulation material) Weight : 0.075 Kilograms (kg) Max Voltage : 1575 Volt (V)
