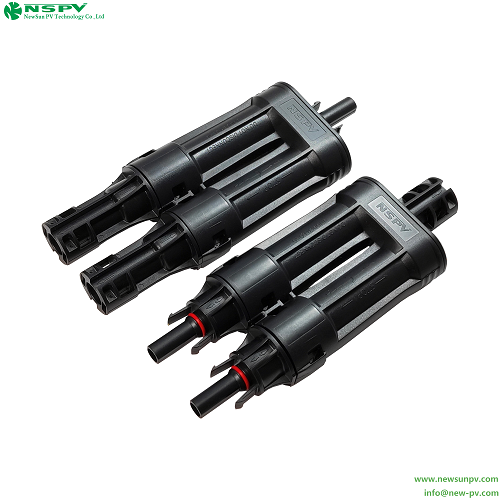

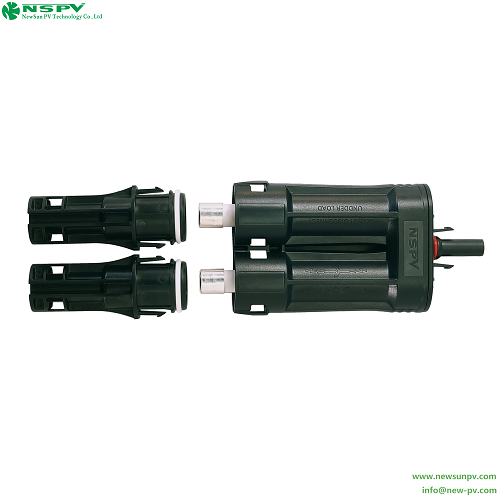

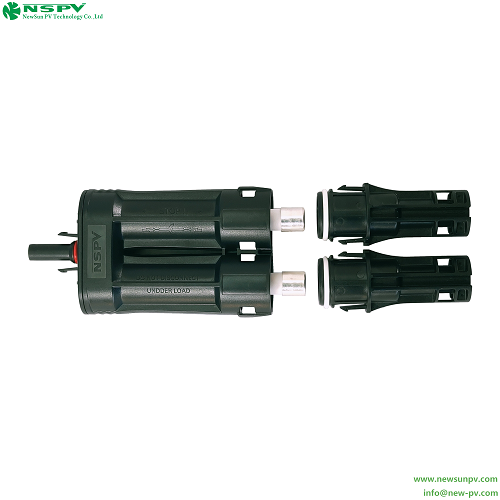

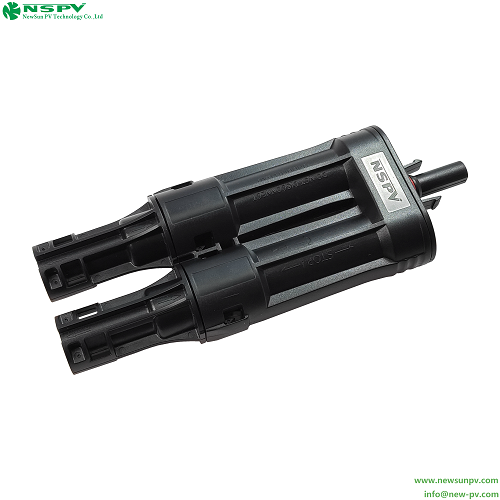

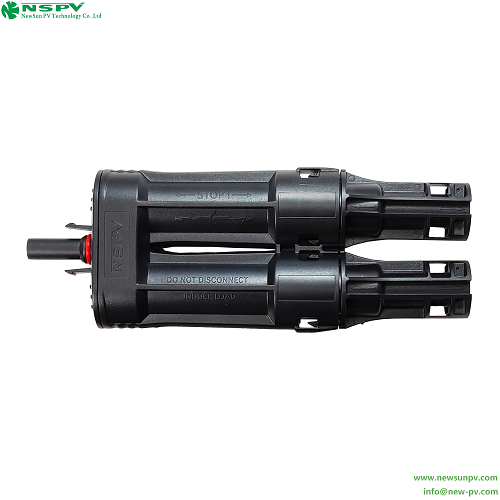

4FBMF00-15 High Precision Solar Branch Fuse Connectors 1500VDC 60A With TUV Certificate

Product Details:

Product Type Other
Material PPE/PA(Insulation material)
Operating Temperature -40-+85 Celsius (oC)
Output Voltage 1500 Volt (V)
Size 14.5*2.5*2.2
Dimension (L*W*H) 14.5*2.5*2.2 Centimeter (cm)
Color Black
Share Your Product:

7.26 USD ($)/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

4FBMF00-15 High Precision Solar Branch Fuse Connectors 1500VDC 60A With TUV Certificate Price And Quantity

Minimum Order Quantity 100 Piece
Price 7.26 USD ($)/Piece

4FBMF00-15 High Precision Solar Branch Fuse Connectors 1500VDC 60A With TUV Certificate Product Specifications

Material PPE/PA(Insulation material)
Output Voltage 1500 Volt (V)
Color Black
Size 14.5*2.5*2.2
Product Type Other
Operating Temperature -40-+85 Celsius (oC)
Dimension (L*W*H) 14.5*2.5*2.2 Centimeter (cm)

4FBMF00-15 High Precision Solar Branch Fuse Connectors 1500VDC 60A With TUV Certificate Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Month
Delivery Time Days
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Standard packing
Main Domestic Market All India
Certifications TUV

Product Description

2To1 Fuse Connector

Insulation Material: PPEPA

Rated Voltage:1500V DC

Rated Current Without Fuse Max.Input: 30A

Max.Output:60A

Maximum Voltage: 8kV

Contact Resistance:025m

Contact Material: CopperTin Plated

Degree Of Protection: IP68

Product: Color Black

Fuse Specification: 1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,16A,20A,25A,30A,32A,35A,40A,45A,50A

Flame Class: UL94V0

Safety Degree: II

Regulatory Approval: TUV,CE

Ambient Temperature: -40...+85 IEC

Suitable For Fuse Size:10x85, 14x85

Suitable Cable Cross Sections: 25-10mm/14-8AWG

Upper Limiting Temperature: 110IEC
