TUV Certified Solar Panel Connector 1500VDC 60A Standard Type For Solar Inverter And PV Combiner Box Solar Panel Mount
Product Details:
- Product Type Other
- Material PPE/PA(Insulation material)
- Operating Temperature -40-+85 Celsius (oC)
- Output Voltage 1500 Volt (V)
- Color Black
-
Share Your Product:
0.98 USD ($)/Pair
X
TUV Certified Solar Panel Connector 1500VDC 60A Standard Type For Solar Inverter And PV Combiner Box Solar Panel Mount Price And Quantity
- 0.98 USD ($)/Pair
- 500 Pair
TUV Certified Solar Panel Connector 1500VDC 60A Standard Type For Solar Inverter And PV Combiner Box Solar Panel Mount Product Specifications
- -40-+85 Celsius (oC)
- Black
- PPE/PA(Insulation material)
- Other
- 1500 Volt (V)
TUV Certified Solar Panel Connector 1500VDC 60A Standard Type For Solar Inverter And PV Combiner Box Solar Panel Mount Trade Information
- EXW
- 10000 Pair Per Week
- Days
- Yes
- Contact us for information regarding our sample policy
- Standard packing
- All India
- TUV
Product Description
|

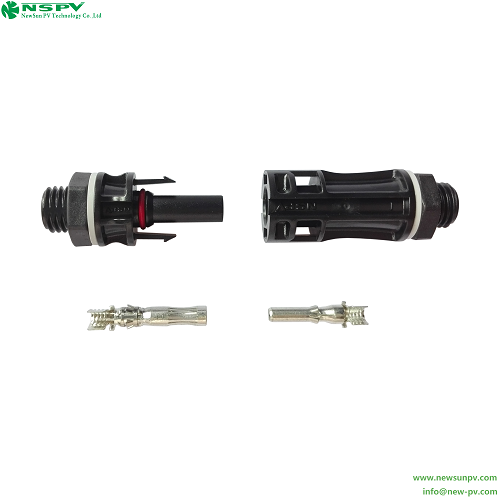

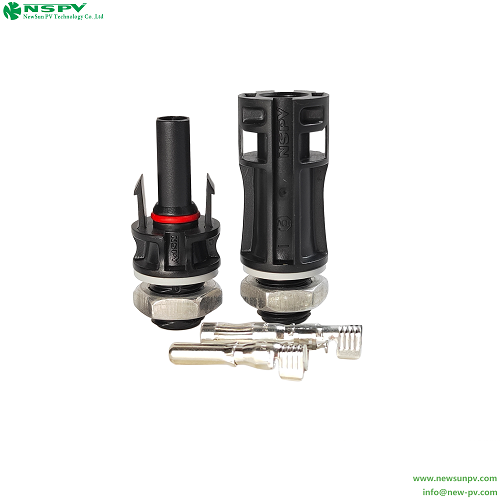

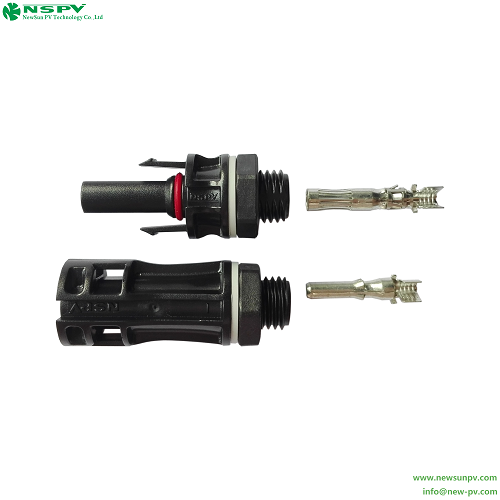

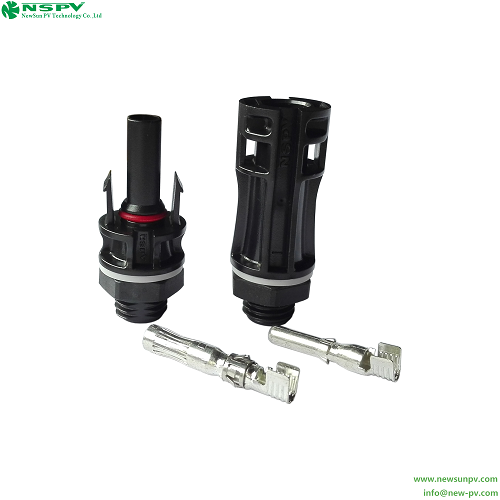

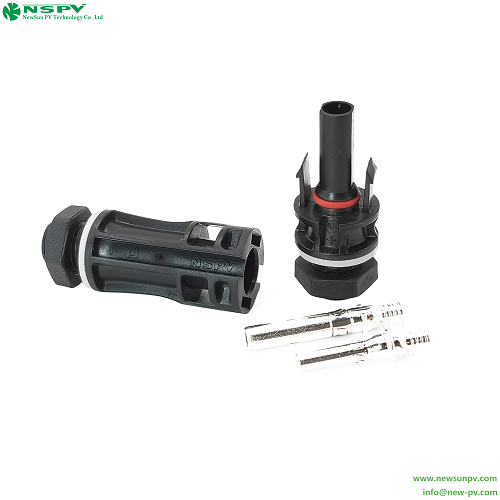

PV4.0 1500VDC Panel Connector Standard type |
|||
|
Product Specifications |
|||
|
Insulation material |
PPE/PA |
Safety degree |
II |
|
Rated current |
Max. 60A |
Flame class |
UL94-V0 |
|
Rated voltage |
1500VDC |
Ambient temperature range |
-40-+85(IEC) |
|
Test voltage |
8kV(50Hz,Imin) |
Suitable cable cross sections |
2.5-6mm2/14-10AWG |
|
Contact resistance |
less than 0.25mohm |
Connecting system |
Crimp connection |
|
Contact material |
Copper,Tin plated |
Nut cap locking force |
0.8-1.0Nm |
|
Degree of protection |
IP68(1m,1H) |
Upper limiting temperature |
110(IEC) |
|
Overvoltage category/Pollution degree |
CATIII/2 |
Rated Impulse voltage |
16kV |
