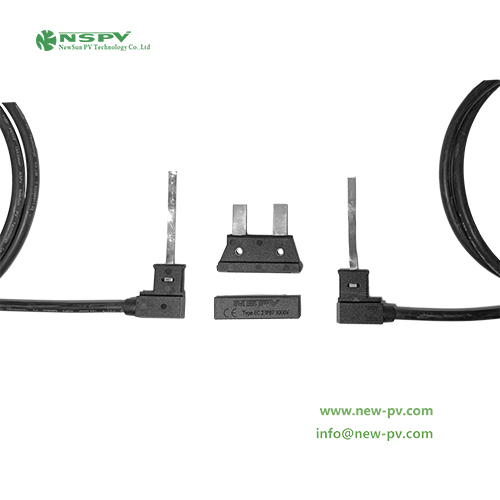

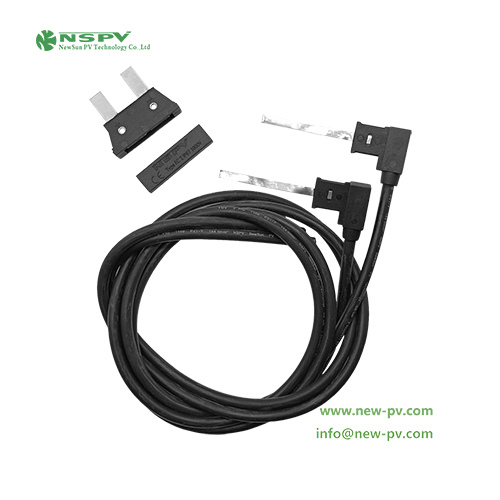

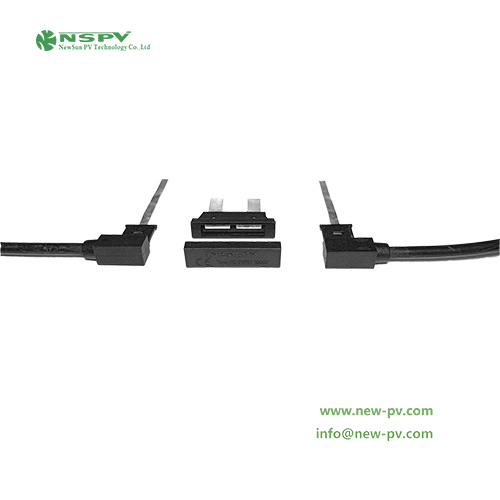

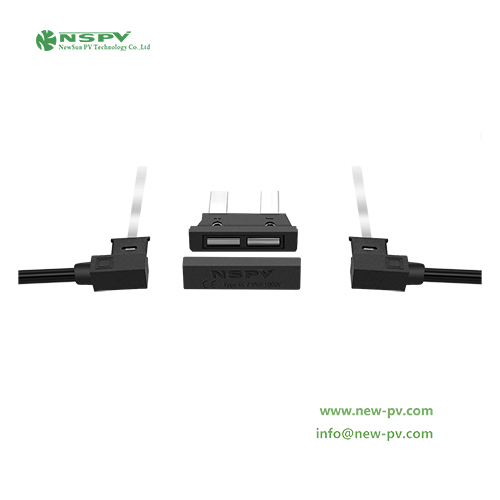

PV Edge Connectors String Ribbon Connectors For Bifacial Solar Modules Edge Solar Panel Connectors
Product Details:
- Material PA/CU(Insulation material)
- Operating Temperature -40-+85 Celsius (oC)
- Output Voltage 1000/1500 Volt (V)
- Color Black
4.59 USD ($)/Set
X
PV Edge Connectors String Ribbon Connectors For Bifacial Solar Modules Edge Solar Panel Connectors Price And Quantity
- 4.59 USD ($)/Set
- 200 Set
PV Edge Connectors String Ribbon Connectors For Bifacial Solar Modules Edge Solar Panel Connectors Product Specifications
- 1000/1500 Volt (V)
- PA/CU(Insulation material)
- -40-+85 Celsius (oC)
- Black
PV Edge Connectors String Ribbon Connectors For Bifacial Solar Modules Edge Solar Panel Connectors Trade Information
- EXW
- 10000 Set Per Week
- Days
- Yes
- Contact us for information regarding our sample policy
- Standard packing
- All India
Product Description
Glass To Glass Edge Connector for Bifacial Solar ModulesProduct Specifications:
Insulation material: PA/CU; Safety degree: II;
Rated Voltage:1000V/1500VDC;Flame class:UL94-V0;
Rated Impulse voltage:16KV;Installation type:Outdoor,UV resistant(F1);
Test voltage:8kV(50Hz,1min);Ambient temperature range:-40-+85(IEC);
Contact resistance: less than or equal to 0.25 mohm; Suitable cable cross sections:2.5-4mm2/14-12AWG;
Contact material: Copper,Tin plated; Connecting system: Soldering;
Degree of protection:IP68(In potting);Upper limiting temperature:110(IEC);
Overvoltage category/Pollution degree:CATIII/2;Reference standard:TUV/CE(IEC62852:2014).
