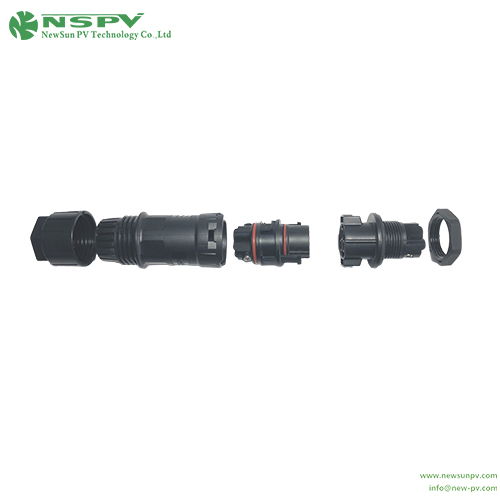

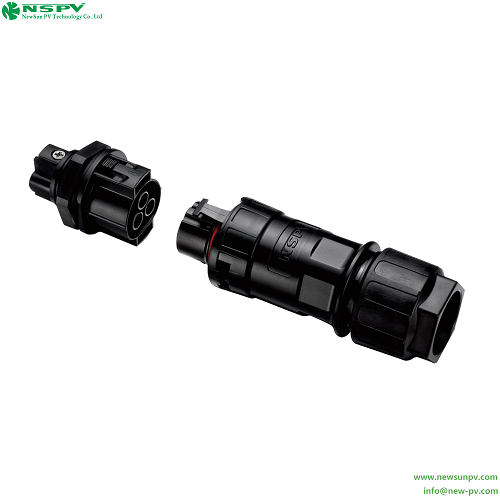

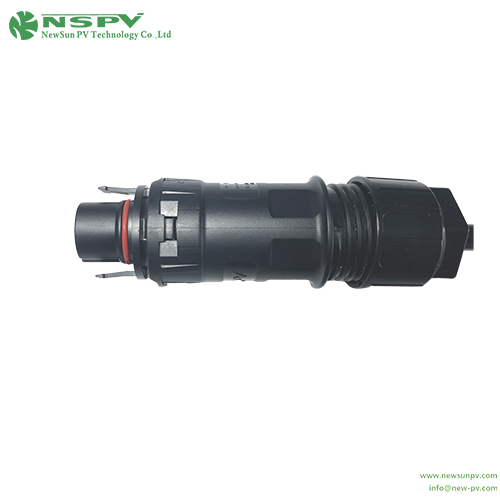

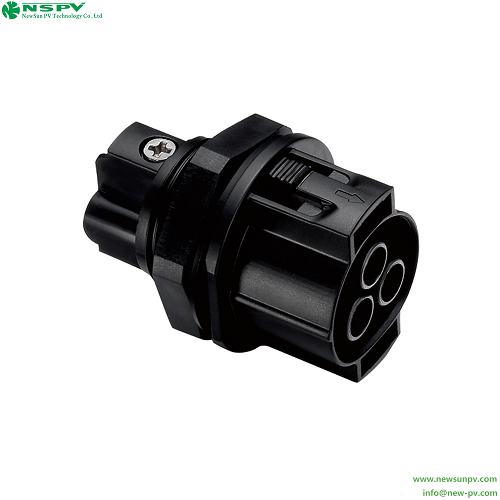

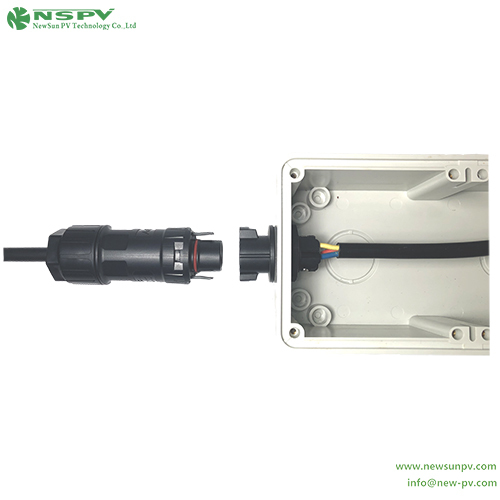

3P Solar AC Inverter Connectors IP68 Waterproof Cable Male To Panel Female Type With TUV Certificate
Product Details:
- Product Type Other
- Material PPE/PA(Insulation material)
- Operating Temperature -40-+85 Celsius (oC)
- Output Voltage 500 Volt (V)
- Color Black
8.73 USD ($)/Set
X
3P Solar AC Inverter Connectors IP68 Waterproof Cable Male To Panel Female Type With TUV Certificate Price And Quantity
- 8.73 USD ($)/Set
- 500 Set
3P Solar AC Inverter Connectors IP68 Waterproof Cable Male To Panel Female Type With TUV Certificate Product Specifications
- Black
- PPE/PA(Insulation material)
- -40-+85 Celsius (oC)
- Other
- 500 Volt (V)
3P Solar AC Inverter Connectors IP68 Waterproof Cable Male To Panel Female Type With TUV Certificate Trade Information
- EXW
- 10000 Set Per Month
- Days
- Yes
- Contact us for information regarding our sample policy
- Standard packing
- All India
- TUV
Product Description
AC3P Connector II- Insulation material:PPE/PA;Safety degree:II;
- Rated current:Max.50A(10sqmm);Flame class:UL94-V0;
- Rated voltage:500V AC;Suitable cable OD Max.:21mm;
- Test voltage:4kV;Ambient temperature range:-40-+85(IEC);
- Typical contact resistance:less than 0.25 mohm;Suitable cable cross sections:2.5-6mmï/14-10AWG;
- Contact material:Copper,Tin plated;Connecting system:Screw/crimping connection;
- Degree of protection:IP68;Insulation resistance:more than 1000 Mohm;
- Contraction diameter/number of contact:4.0x3;Standard:EN 61984.
