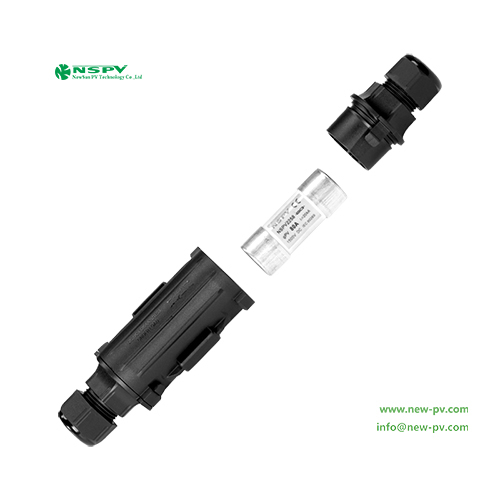

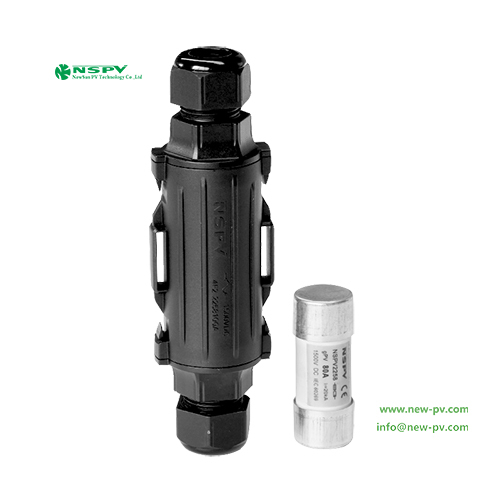

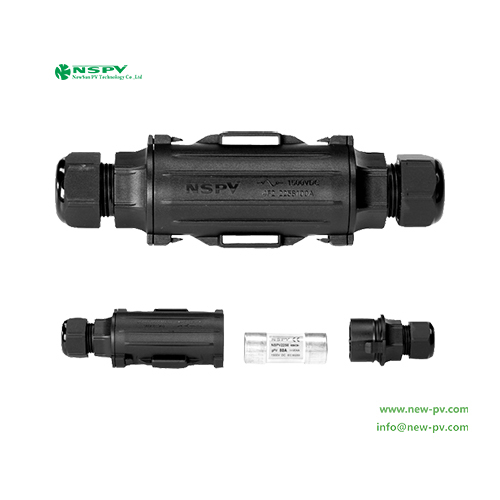

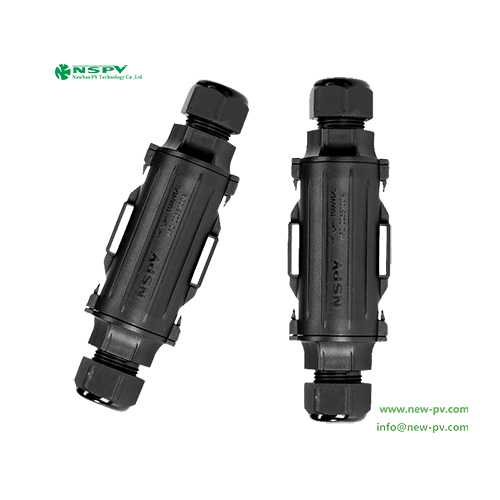

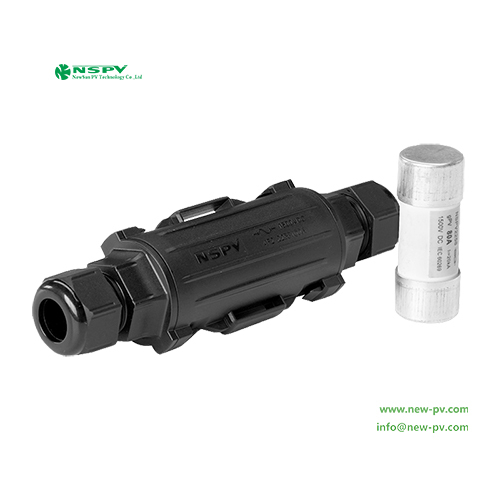

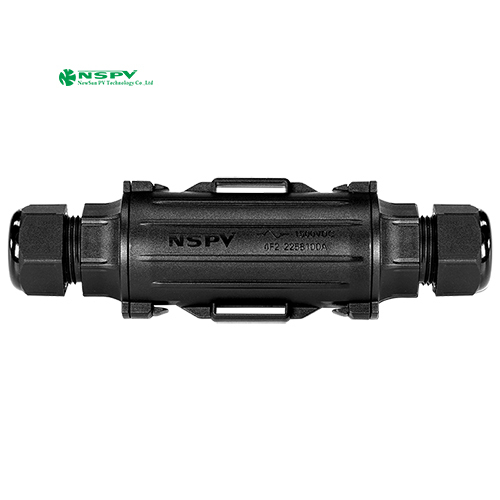

NSPV New Arrival Waterproof Solar Fuse Connector 1500VDC Max Current Max 100A Inline Fuse

Product Details:

Material PC/PA(Insulation material)
Operating Temperature -40-+85 Celsius (oC)
Output Voltage 1500 Volt (V)
Color Black
Share Your Product:

Get a Price/Quote

Request To Call Back Send Inquiry

NSPV New Arrival Waterproof Solar Fuse Connector 1500VDC Max Current Max 100A Inline Fuse Price And Quantity

Minimum Order Quantity 100 Piece

NSPV New Arrival Waterproof Solar Fuse Connector 1500VDC Max Current Max 100A Inline Fuse Product Specifications

Operating Temperature -40-+85 Celsius (oC)
Material PC/PA(Insulation material)
Color Black
Output Voltage 1500 Volt (V)

NSPV New Arrival Waterproof Solar Fuse Connector 1500VDC Max Current Max 100A Inline Fuse Trade Information

FOB Port EXW
Delivery Time 15 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Domestic Market All India

Product Description

1500VDC PV 4.0 Fuse Connector 2258Product Specifications:

Insulation material:PC/PA;Fuse Specification:10-100A;
Rated current(Without fuse):100A(With 25sqmm);Safety degree:II;
Rated voltage:1500VDC;Flame class:UL94-V0;
Maximum voltage(With fuse):1575V;Ambient temperature range:-40-+85(IEC);
Contact resistance: less than 0.25 mohm;Upper limiting temperature:110(IEC);
Contact material:Copper,Tin plated;Suitable cable cross sections:10-25mm2;
Degree of protection:IP68(1m,1H);Suitable for fuse size(mm):22X58;
Rated Impulse voltage:16KV;Regulatory approval:IEC60269/IEC60947.
