NSPV 4F2-15 TUV Certified Detachable 1500VDC 50A Solar Fuse Connectors For Solar Y Connectors mc4 Inline Fuse

Product Details:

Product Type Other
Material PPE/PA(Insulation material)
Operating Temperature -40-+85 Celsius (oC)
Max Voltage 1575 Volt (V)
Output Voltage 1500 Volt (V)
Color Black
Share Your Product:

4.19 USD ($)/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

NSPV 4F2-15 TUV Certified Detachable 1500VDC 50A Solar Fuse Connectors For Solar Y Connectors mc4 Inline Fuse Price And Quantity

Minimum Order Quantity 100 Piece
Price 4.19 USD ($)/Piece

NSPV 4F2-15 TUV Certified Detachable 1500VDC 50A Solar Fuse Connectors For Solar Y Connectors mc4 Inline Fuse Product Specifications

Operating Temperature -40-+85 Celsius (oC)
Max Voltage 1575 Volt (V)
Output Voltage 1500 Volt (V)
Material PPE/PA(Insulation material)
Color Black
Product Type Other

NSPV 4F2-15 TUV Certified Detachable 1500VDC 50A Solar Fuse Connectors For Solar Y Connectors mc4 Inline Fuse Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Month
Delivery Time 9 Days
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Standard packing
Main Domestic Market All India
Certifications TUV

Product Description

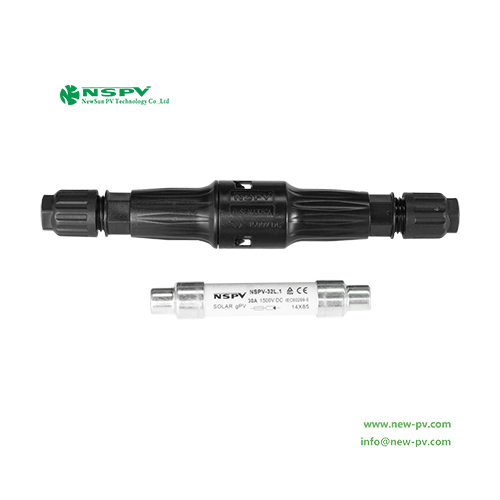

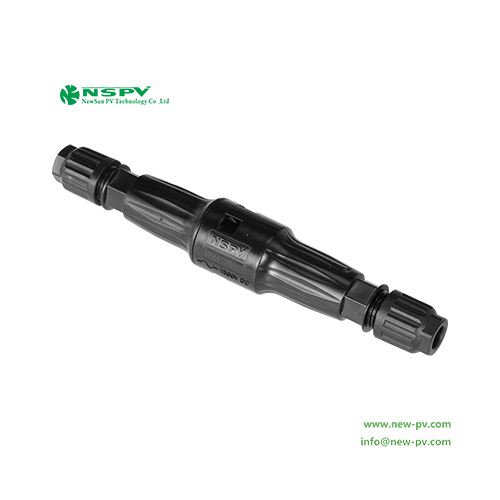

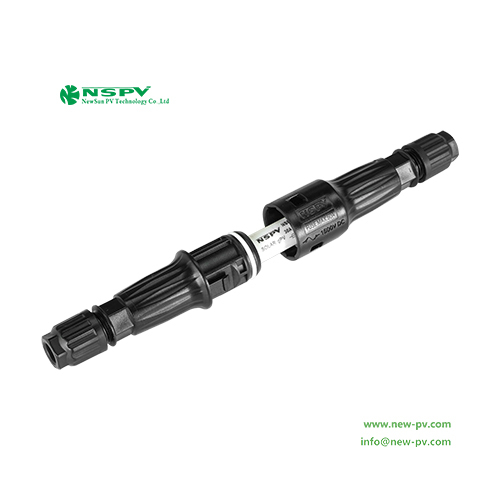

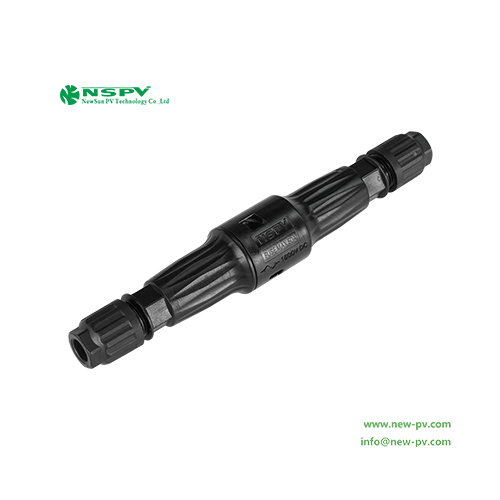

1500VDC PV4.0 Fuse Connector
Product Specifications:

Insulation material:PPE/PA;

Rated current(Without fuse):50A;

Rated voltage:1500VDC;

Maximum voltage(With fuse):1575V;

Contact resistance:less than 0.25mOhm;

Contact material:Copper,Tin plated;

Degree of protection:IP68(1m,1H);

Rated Impulse voltage:12KV;

Fuse Specification:1A-50A;

Safety degree:II;

Flame class:UL94-V0;

Ambient temperature range:-40 degrees Celsius-+85 degrees Celsius(IEC);

Upper limiting temperature:110 degrees Celsius(IEC);

Suitable cable cross sections:2.5-10mmsq./14-8AWG(4F1-15/4F2-15/4F3-15);

Suitable for fuse size(mm):10X85 or 10/14X85;

Regulatory approval:TUV,CE.
