Edge Solar Panel Connectors 1000V 1500V PV Panel Connector For Bifacial Solar Panels
Product Details:
- Material PA/CU(BOX material)
- Operating Temperature -40-+85 Celsius (oC)
- Output Voltage 1000/1500 Volt (V)
- Color Black
4.59 USD ($)/Piece
X
Edge Solar Panel Connectors 1000V 1500V PV Panel Connector For Bifacial Solar Panels Price And Quantity
- 4.59 USD ($)/Piece
- 100 Piece
Edge Solar Panel Connectors 1000V 1500V PV Panel Connector For Bifacial Solar Panels Product Specifications
- PA/CU(BOX material)
- Black
- -40-+85 Celsius (oC)
- 1000/1500 Volt (V)
Edge Solar Panel Connectors 1000V 1500V PV Panel Connector For Bifacial Solar Panels Trade Information
- EXW
- 1000 Piece Per Day
- Yes
- Contact us for information regarding our sample policy
- Standard packing
- All India
Product Description

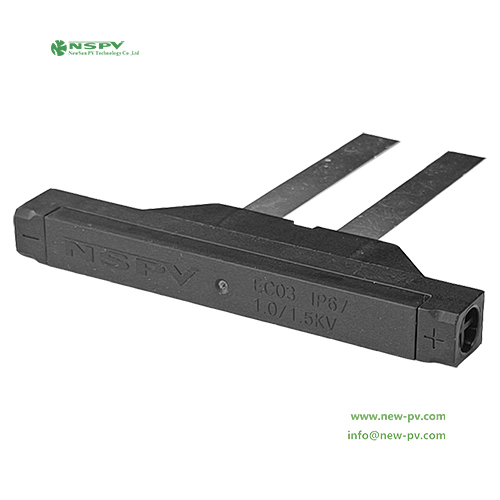

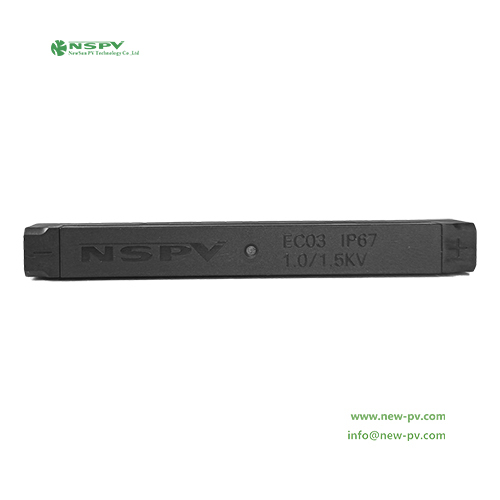

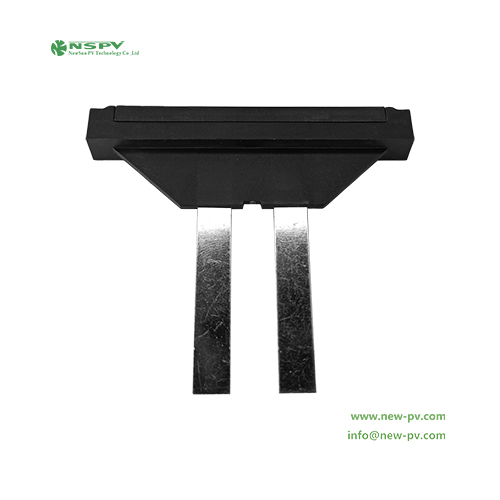

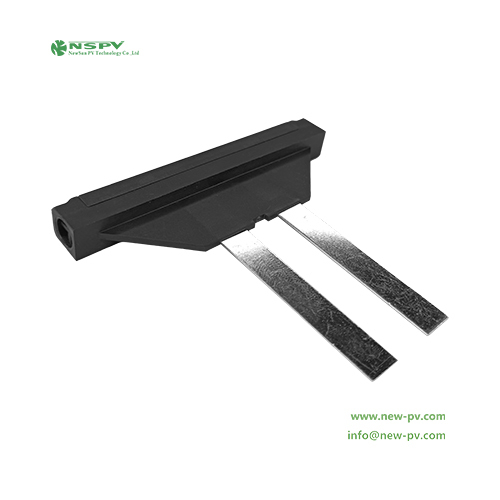

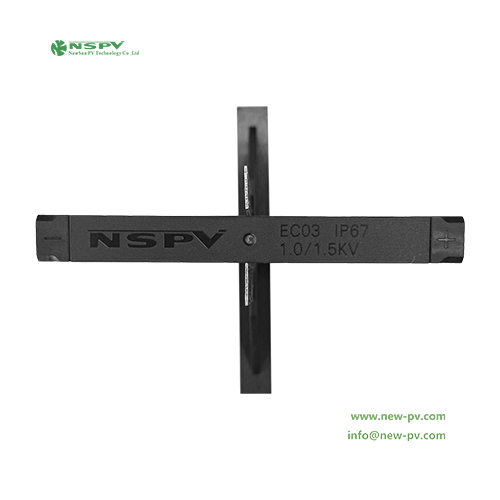

EC03 Glass To Glass Edge ConnectorProduct Specifications:
- BOX Material:PA/CU;Flame Class:UL94-V0;
- Rated current:Max.15A(Diode 20A);Ambient temperature range:-40-+85(IEC);
- Rated voltage:1000V+1500VDC;Suitable cable cross sections:2.5-4mm2/14-12AWG;
- Test voltage:8kV(50Hz,Imin);Diode Number:Each 1PC;
- Typical contact resistance:less than 0.25mOhm;Upper limiting temperature:120(IEC);
- Contact material:Copper,Tin plated;Range of cable gland(mm):O.D.:5.5;
- Degree of protection:IP67(In potting);Ribbons size(mm):2x7.0;
- Safety degree:II;Connection of bus ribbons:Soldering.
