Waterproof TUV Solar 2 To 1Branch Connectors 1500VDC 60A PV Branch Connectors For Solar System
Product Details:
- Material PPE(Insulation material)
- Operating Temperature -40-+85 Celsius (oC)
- Output Voltage 1500 Volt (V)
- Color Black
2.85 USD ($)/Pair
X
Waterproof TUV Solar 2 To 1Branch Connectors 1500VDC 60A PV Branch Connectors For Solar System Price And Quantity
- 1000 Pair
- 2.85 USD ($)/Pair
Waterproof TUV Solar 2 To 1Branch Connectors 1500VDC 60A PV Branch Connectors For Solar System Product Specifications
- -40-+85 Celsius (oC)
- 1500 Volt (V)
- Black
- PPE(Insulation material)
Waterproof TUV Solar 2 To 1Branch Connectors 1500VDC 60A PV Branch Connectors For Solar System Trade Information
- EXW
- 10000 Pair Per Month
- Days
- Yes
- Contact us for information regarding our sample policy
- Standard packing
- All India
- TUV
Product Description
-

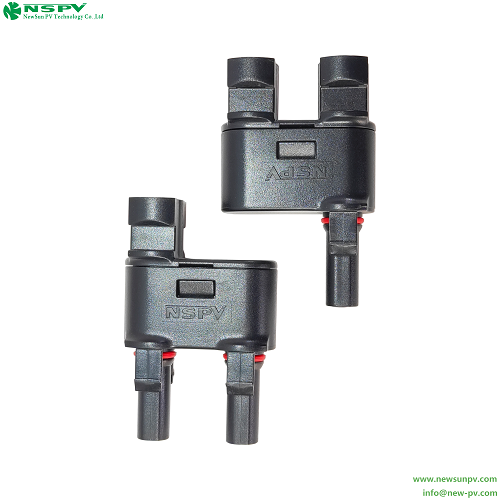

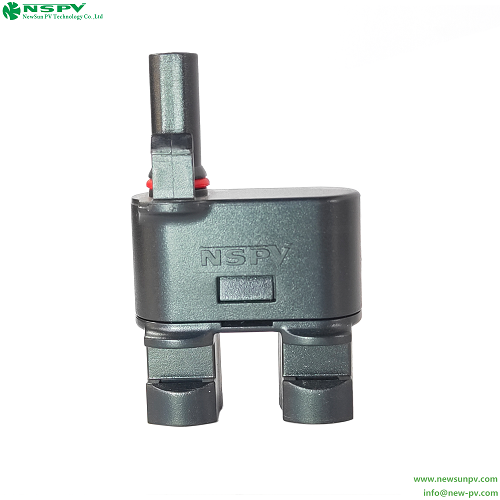

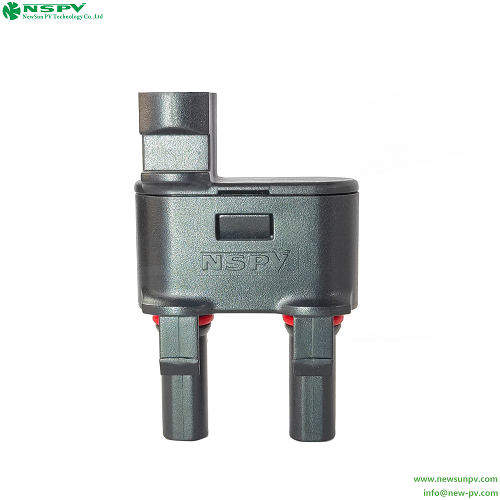

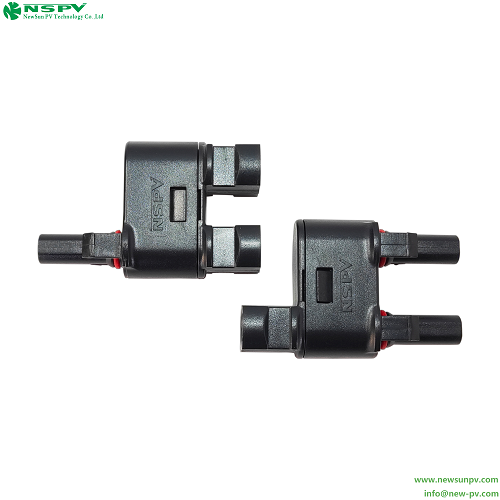

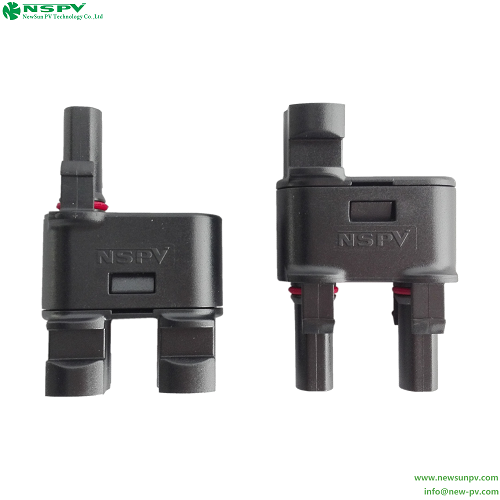

1500VDC PV40 Branch Connector 2 In 1
Insulation material: PPE; Safety degree: II;
Rated current: 60A; Flame class: UL94-V0;
Rated voltage: 1500VDC; Ambient temperature range: -40ï..+85ï(IEC);
Test voltage: 8kV(50Hz,1min); Suitable cable cross sections: 2.5-10mmï/14-8AWG;
Contact resistance: less than 025mohm; Contact material: Copper,Tin plated
Upper limiting temperature: 110ï(IEC); Degree of protection: IP68(1m1H);
Rated Impulse voltage: 16kV; Over voltage categoryPollution degree: CATIII2;
