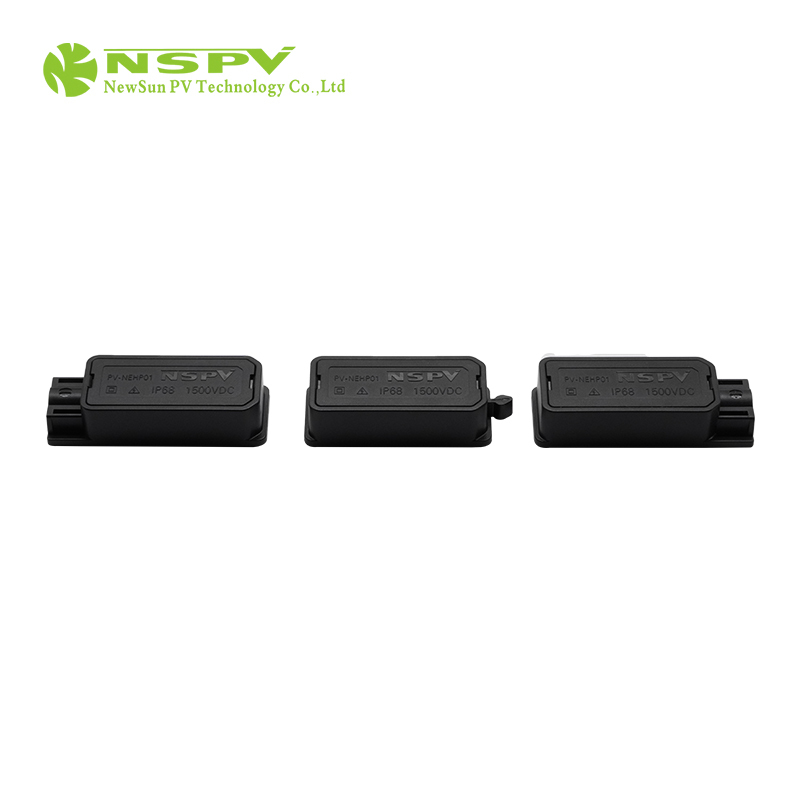

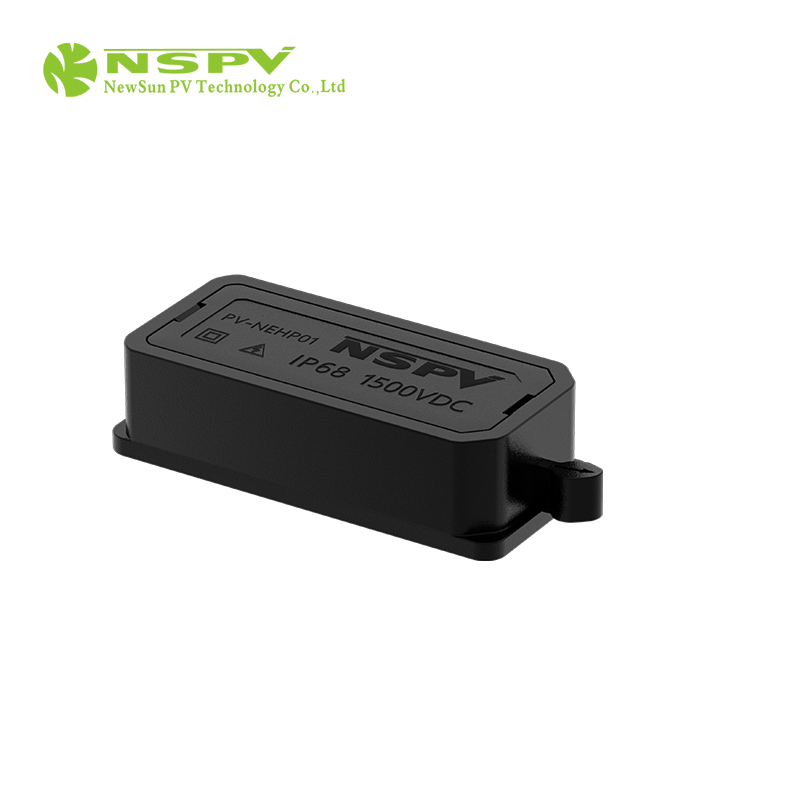

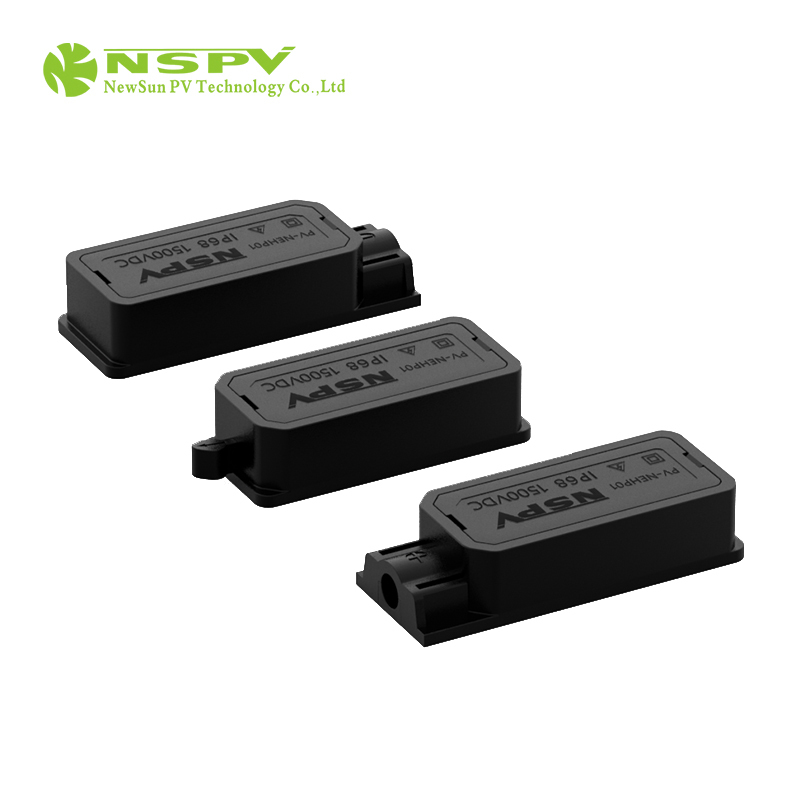

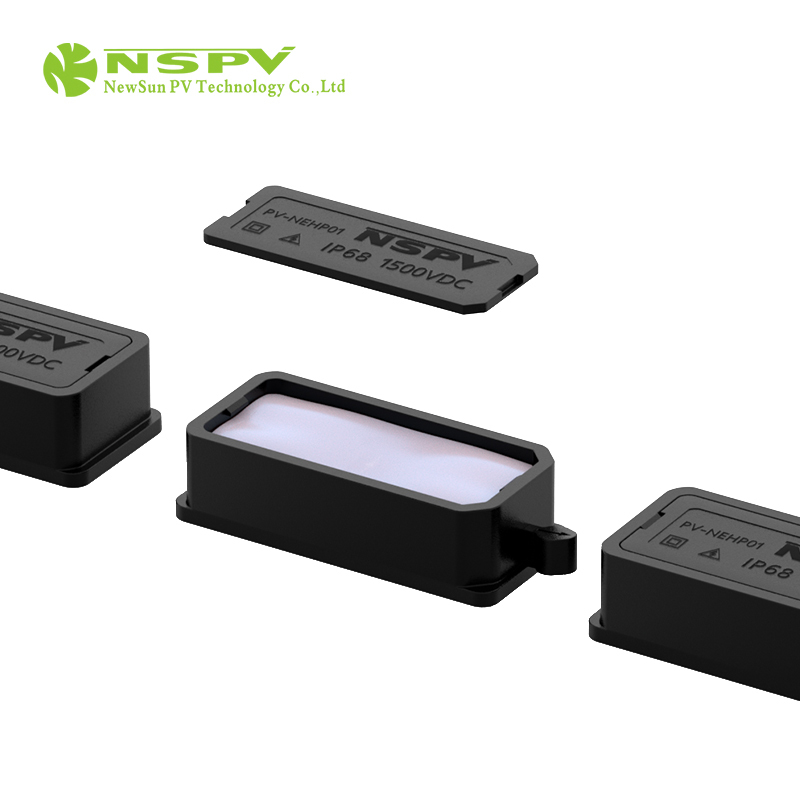

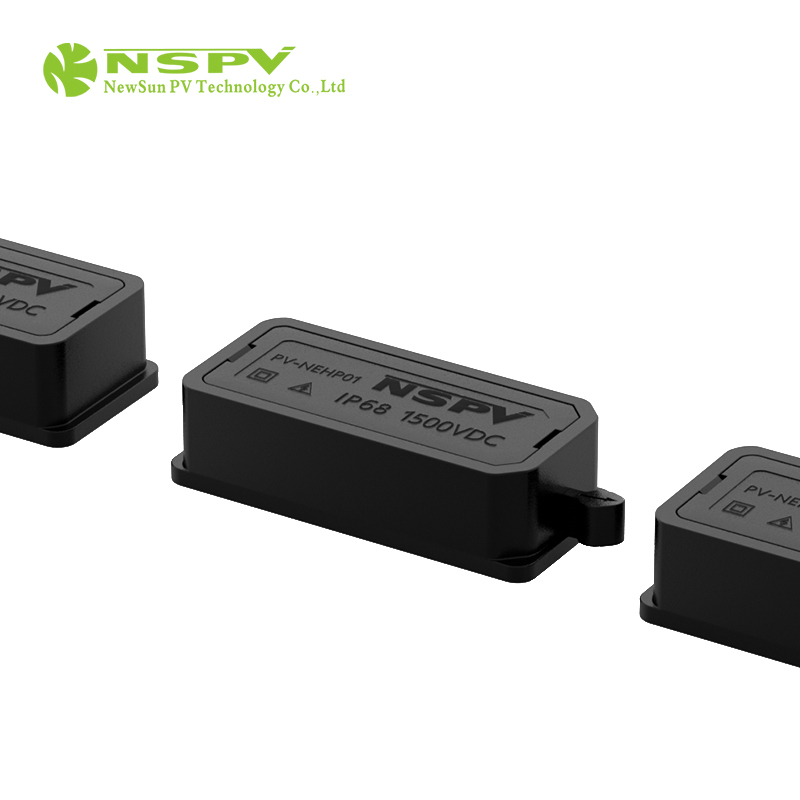

TUV Certified Solar Module Junction Box IP68 Waterproof

Product Details:

Share Your Product:

3.95 USD ($)/Set

Get a Price/Quote

Request To Call Back Send Inquiry

TUV Certified Solar Module Junction Box IP68 Waterproof Price And Quantity

Price Range 3.95 - 5.00 USD ($)/Set
Price 3.95 USD ($)/Set
Minimum Order Quantity 500 Set

TUV Certified Solar Module Junction Box IP68 Waterproof Trade Information

FOB Port EXW
Payment Terms Telegraphic Transfer (T/T)
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications TUV

Product Description

PV-NEHP01
— The junction box uses the PPE/PA,High rigidity, high temperature resistance chemical resistance, wear resistance and pollution resistance
— The junction box uses the glue to seal, the waterproof effect is better, the fitting interior heat is better.
— This junction box is a three-part design, and the cable adopts horizontal outlet mode, which can reduce the cable bending stress, save the cable usage, reduce the power loss of PV module, and divide the influence of "hot spot effect" into three parts. The influence of high temperature on photovoltaic modules is reduced.
— The diode and the terminal adopt an integrated packaging mode, and the terminal uses red copper

Product Specifications
Insulation material	PPE/PA	Safety degree	II
Rated current	22A(With diode 30A) 35A(With diode 50A)	Flame class	UL94-V0
Rated voltage	1500V DC	Rated Impulse voltage	16KV
Test voltage	8kV(50Hz,1min)	Ambient temperature range	-40„+85„(IECï¼‰
Typical contact resistance	‰0.25 mÎ	Suitable cable cross sections	4mm2/12AWG
Contact material	Copper,Tin plated	Range of cable gland(mm)	O.D.:6.0
Degree of protection	IP65/IP68(in potting)	Upper limiting temperature	110„(IEC)
Overvoltage category/Pollution degree	CATIII/2	Connection of bus ribbons	Soldering
