TUV Certified PV Solar Branch Fuse Connector Inline Fuse 2 Cable To Female Type

Product Details:

Share Your Product:

7.26 USD ($)/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

TUV Certified PV Solar Branch Fuse Connector Inline Fuse 2 Cable To Female Type Price And Quantity

Price 7.26 USD ($)/Piece
Price Range 7.26 - 7.78 USD ($)/Piece
Minimum Order Quantity 500 Piece

TUV Certified PV Solar Branch Fuse Connector Inline Fuse 2 Cable To Female Type Trade Information

FOB Port EXW
Payment Terms Telegraphic Transfer (T/T)
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications TUV

Product Description

olar Y Harnes

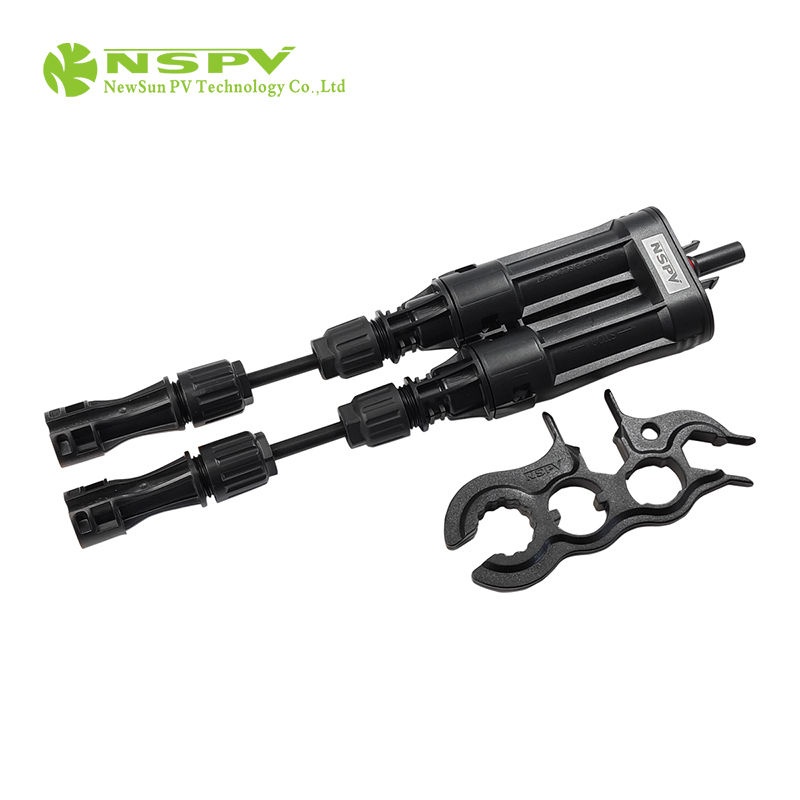

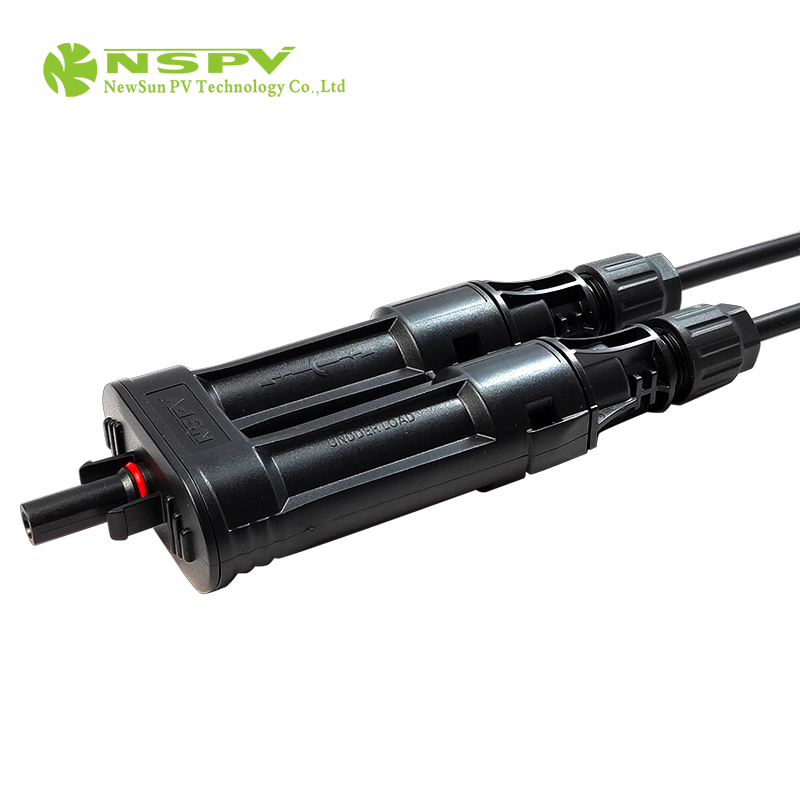

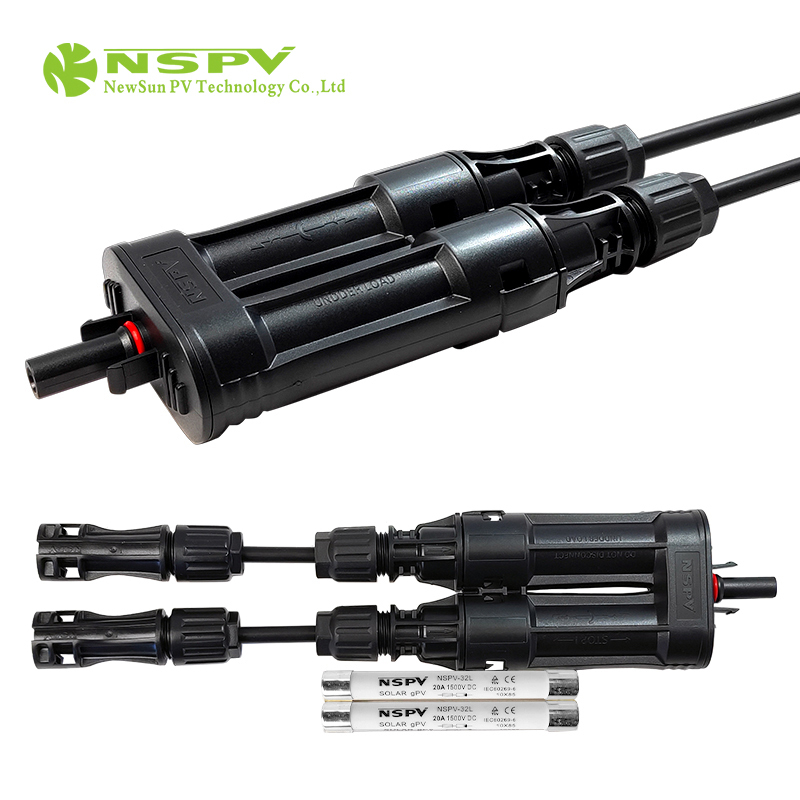

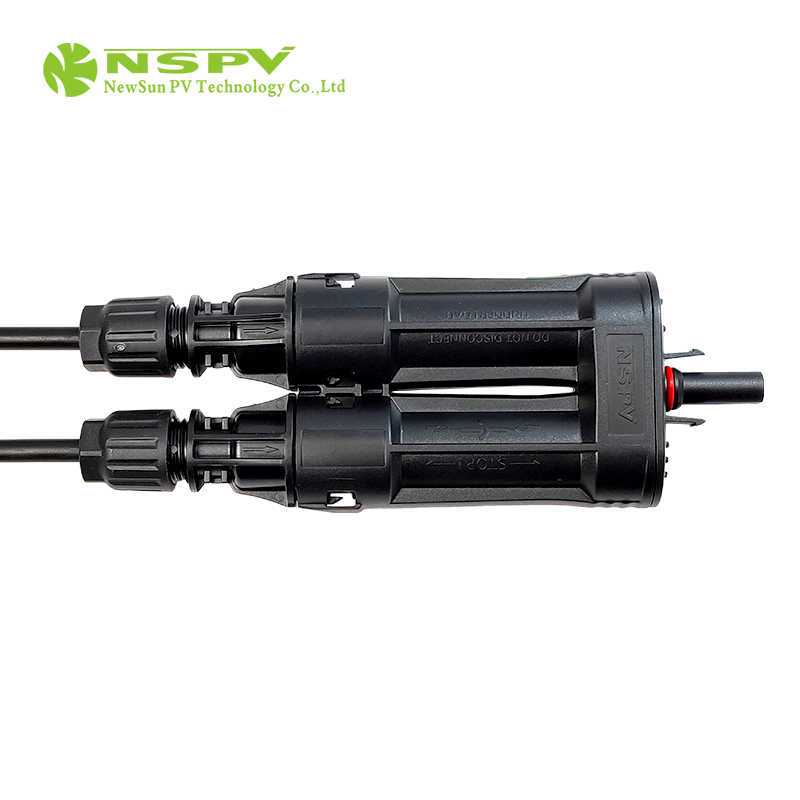

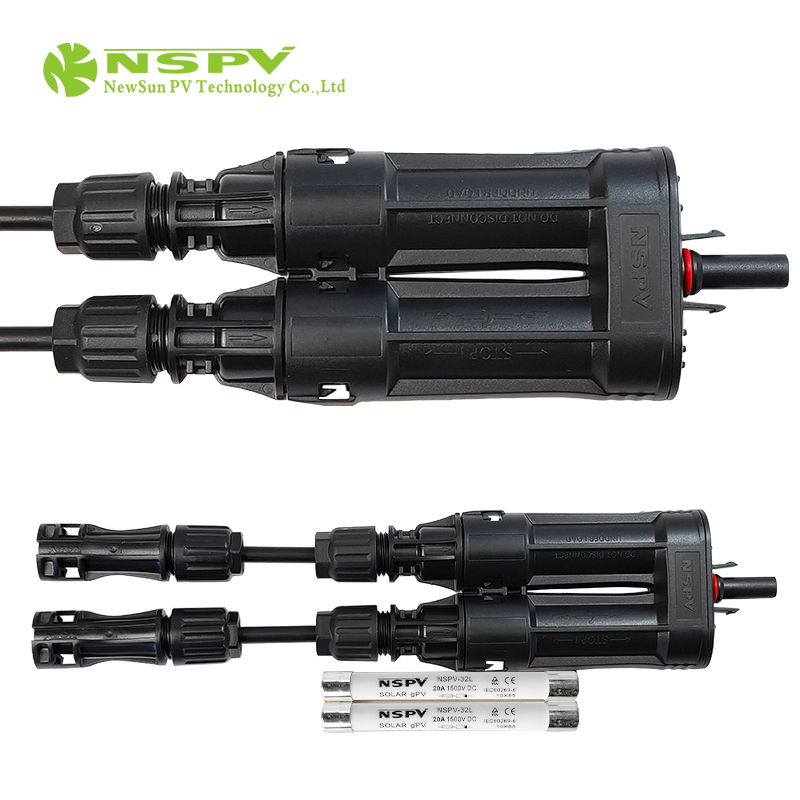

PV4.0 2 to 1 Solar Branch Inline Fuse Connector
Insulation material			PPE/PA
Rated current(Without fuse)			Max. Input:30A Max. Output:60A
Rated voltage			1500VDC
Test voltage			8kV
Typical contact resistance			‰0.25mÎ
Rated Impulse voltage			16kV
Contact material			Copper,Tin plated
Degree of protection			IP68
Safety degree			II
Overvoltage category/Pollution degree			CATIII/2
Flame class			UL94-V0
Ambient temperature range			-40„+85„(IEC)
Suitable cable cross sections			4-10sqmm
Upper limiting temperature			110„(IEC)
Fuse specifications			1A-50A
Regulatory approval			TUV/CE(EN60269/EN62208)
