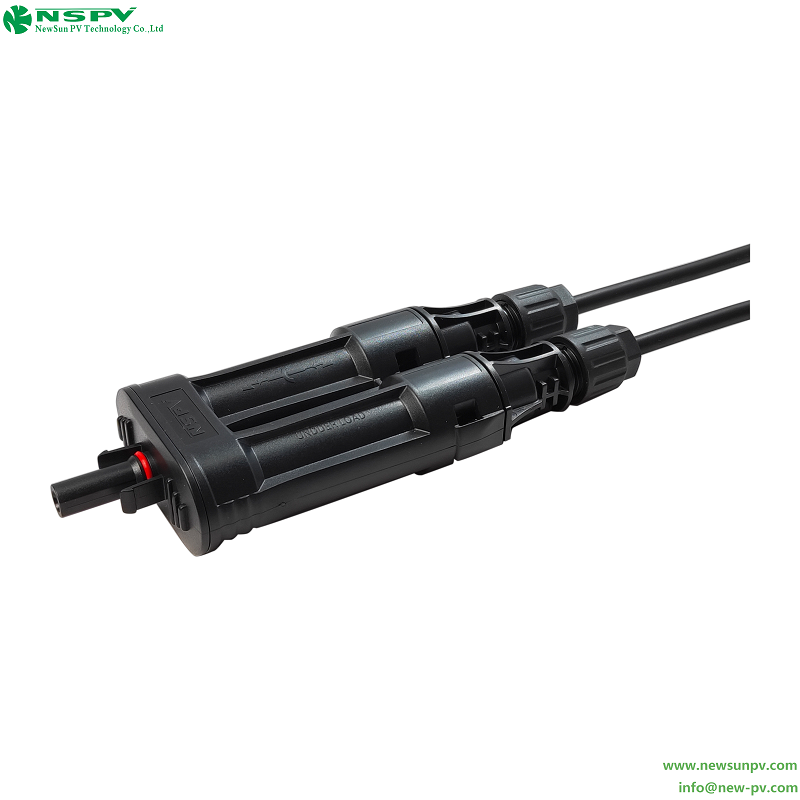

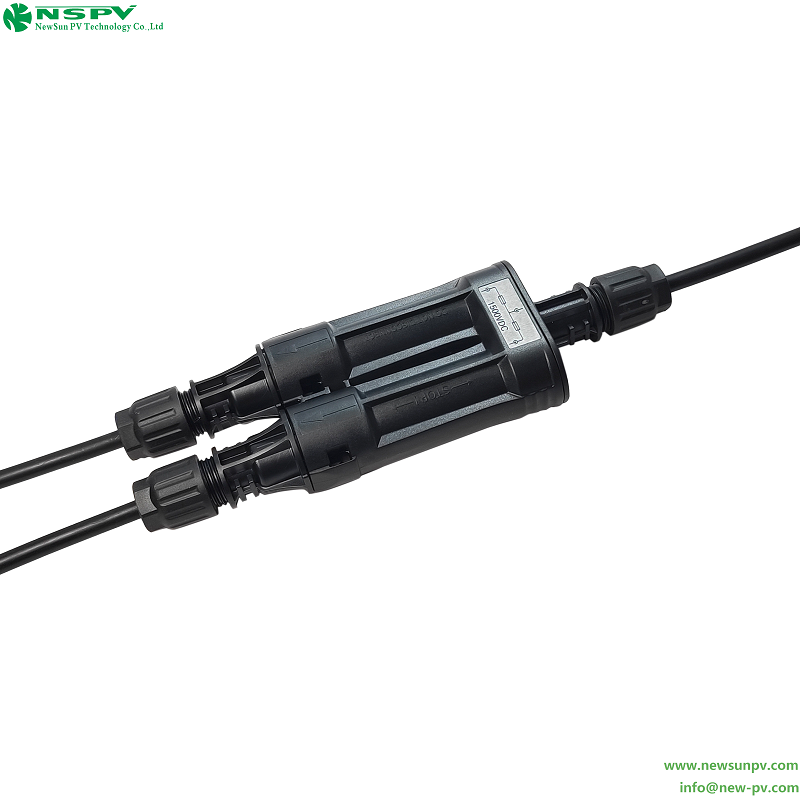

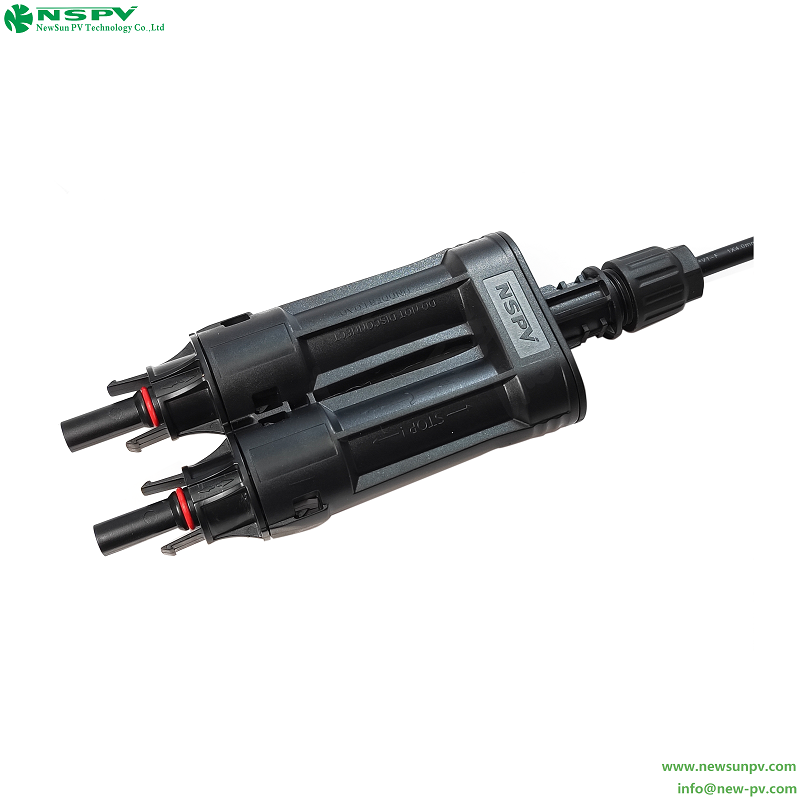

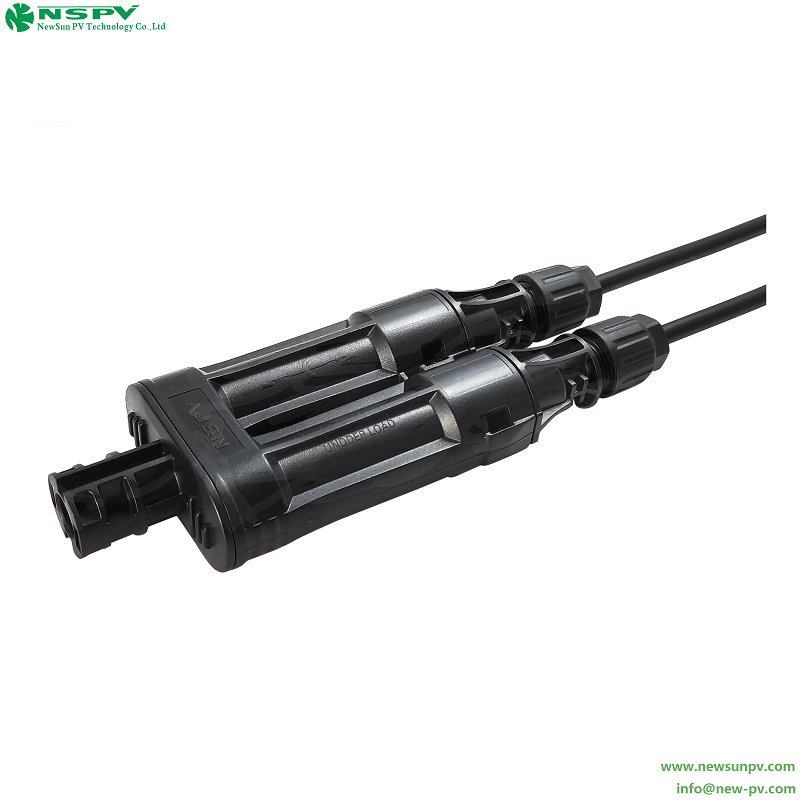

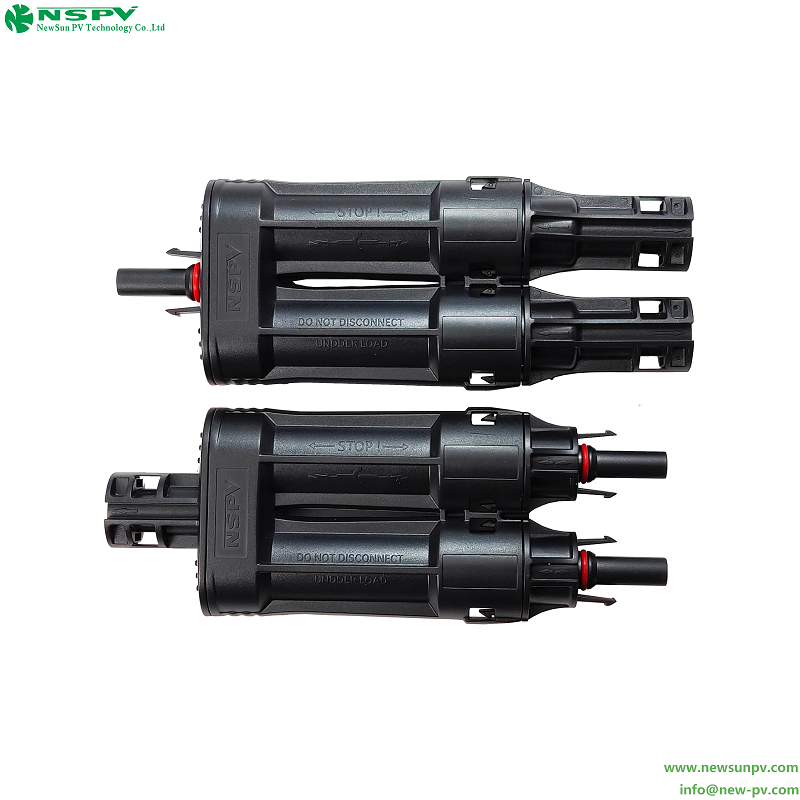

Solar Branch Fuse Connectors 2 To 1 PV Branch Connector With Inline Solar Fusible For Solar System Protection

Product Details:

Material PPE/PA(Insulation material)
Operating Temperature -40+85(IEC) Celsius (oC)
Output Voltage 1500VDC Volt (V)
Share Your Product:

10.96 USD ($)/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

Solar Branch Fuse Connectors 2 To 1 PV Branch Connector With Inline Solar Fusible For Solar System Protection Price And Quantity

Price 10.96 USD ($)/Piece
Minimum Order Quantity 100 Piece

Solar Branch Fuse Connectors 2 To 1 PV Branch Connector With Inline Solar Fusible For Solar System Protection Product Specifications

Output Voltage 1500VDC Volt (V)
Material PPE/PA(Insulation material)
Operating Temperature -40+85(IEC) Celsius (oC)

Solar Branch Fuse Connectors 2 To 1 PV Branch Connector With Inline Solar Fusible For Solar System Protection Trade Information

FOB Port EXW
Supply Ability 5000 Piece Per Week
Delivery Time 12 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Domestic Market All India
Certifications TUV

Product Description

For models 4FBMF154FBFM154FBCC154FBCF154FBCM154FBMC154FBFC15

1500VDC 2in1 Solar Inline Fuse Connector

Product Specifications

Insulation material: PPEPA

Rated current(Without fuse): Max Input30A

Max Output60A

Rated voltage1500VDC

Maximum voltage: 8kV

Contact resistance: 0.25m

Contact material: Copper,Tin-plated

Degree of protection: IP68

Rated Impulse voltage: 16kV

Fuse Specification: 1A2A3A35A4A5A6A8A10A12A15A16A20A25A30A32A35A40A45A50A

Safety degree: II

Flame class: UL94V0

Ambient temperature range: -40ï...+85ï(IEC)

Upper limiting temperature: 110ï(IEC)

Suitable cable cross sections: 4-10sqmm cable

Suitable for fuse sizemm: 1085 or 101485

Regulatory approval: TUV/CE/EN60269/EN62208
