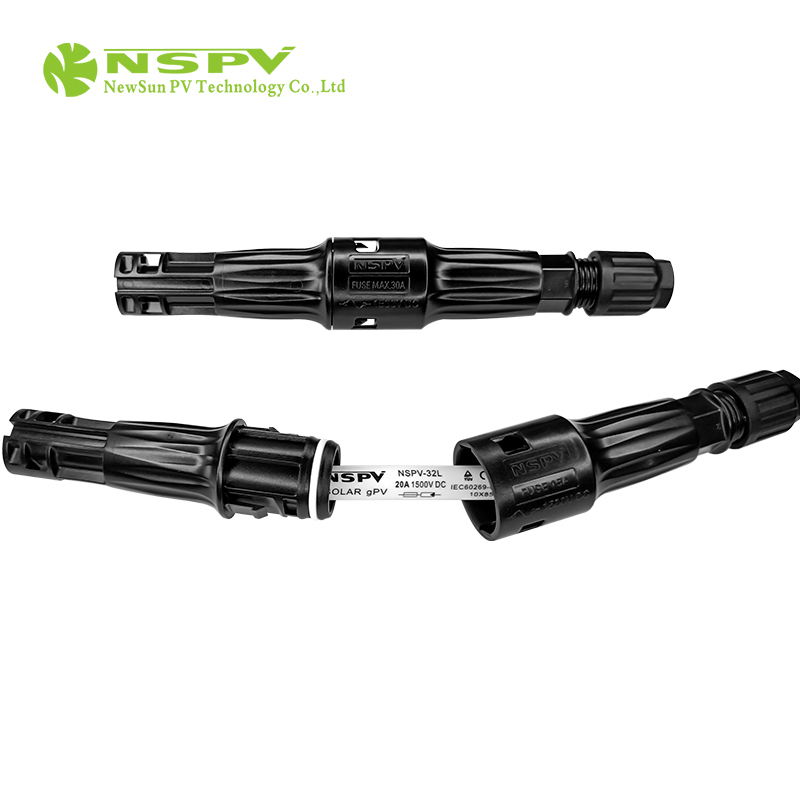

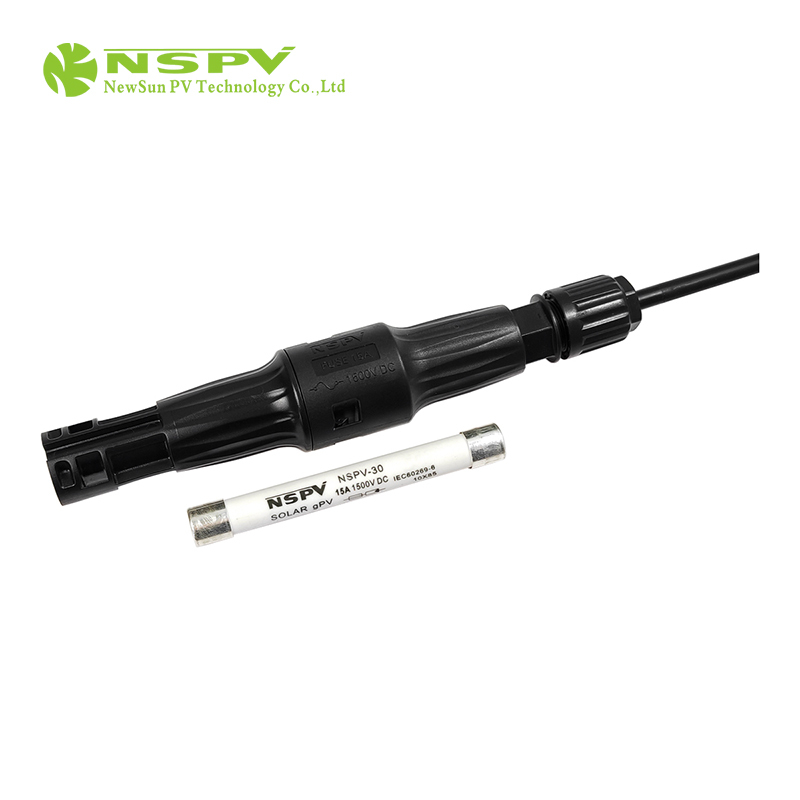

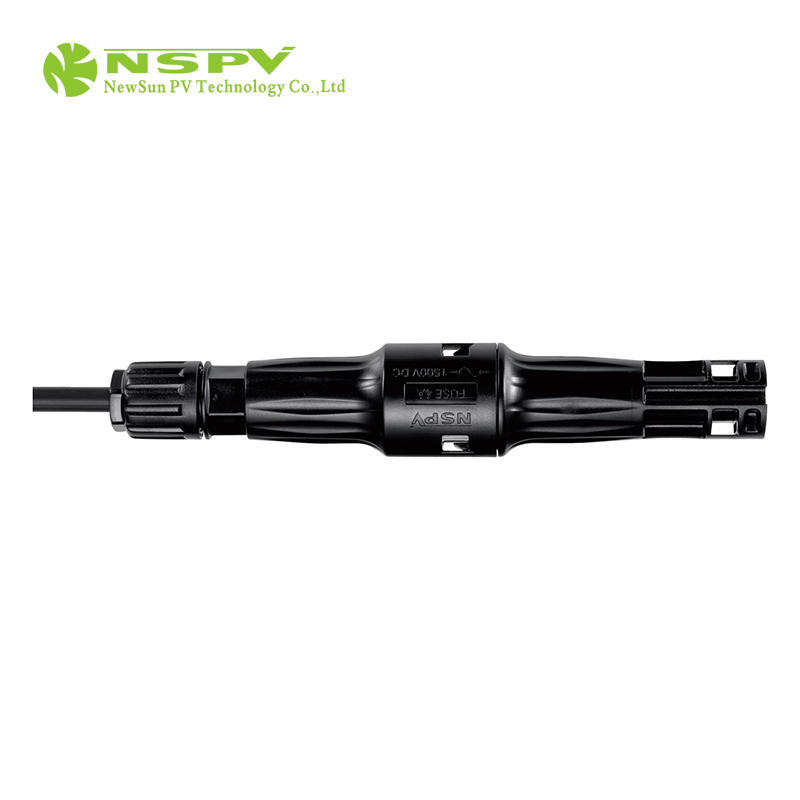

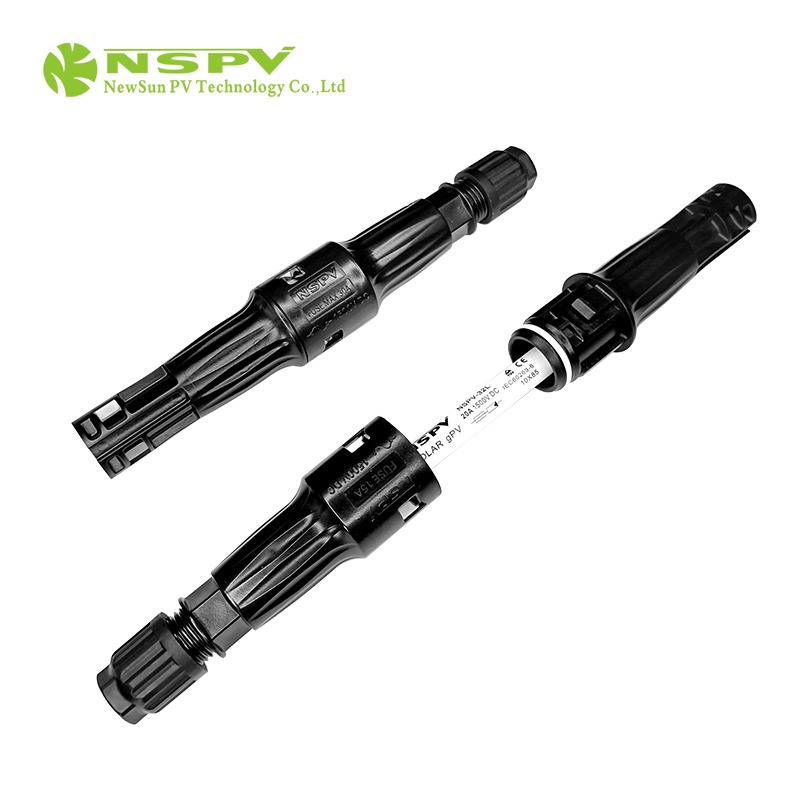

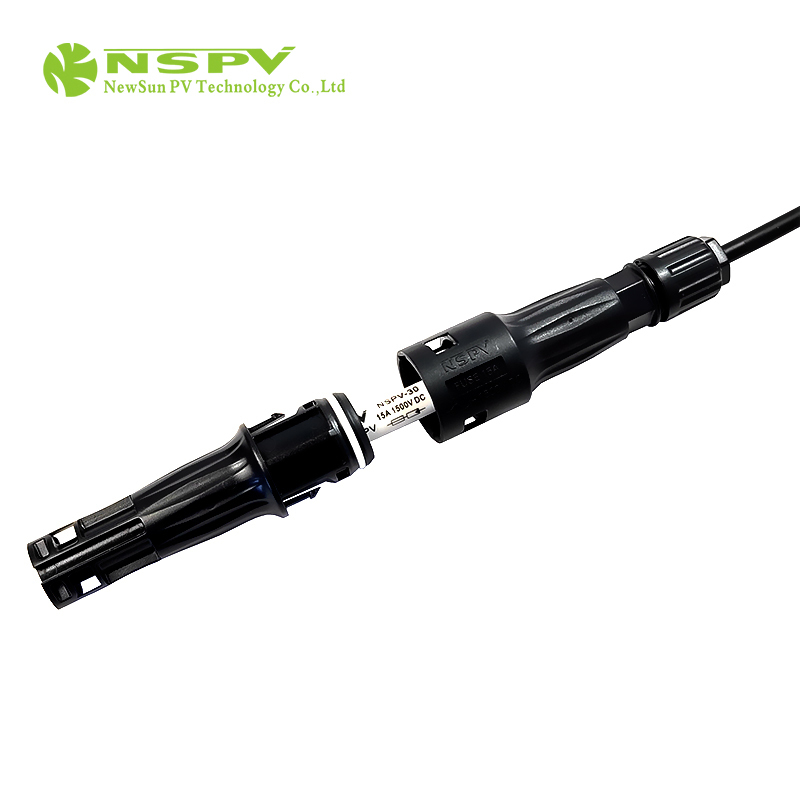

IP68 Waterproof Solar Fuse Connector 1500VDC 50A Cable Male Type

Product Details:

Share Your Product:

4.19 USD ($)/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

IP68 Waterproof Solar Fuse Connector 1500VDC 50A Cable Male Type Price And Quantity

Minimum Order Quantity 500 Piece
Price 4.19 USD ($)/Piece
Price Range 4.19 - 5.00 USD ($)/Piece

IP68 Waterproof Solar Fuse Connector 1500VDC 50A Cable Male Type Trade Information

Payment Terms Telegraphic Transfer (T/T)
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications TUV

Product Description

1500VDC PV 4.0 Fuse Connector 4 types

1500VDC solar inline fuse connector features:
1500VDC, 50A; IP68; Low contact resistance; TUV certified; Suitable for 2.5-10sqmm cable(4F1-154F3-15); Suitable for fuse 10*85 or 10/14*85mm; Easy to replace fuse.

Model: 4F1-15, Please inquire for details and each price excludes the fuse.

Product specifications
Insulation material	PPE/PA	Fuse specifications	1A-50A
Rated current(without fuse)	50A	Safety degree	II
Rated voltage	1500VDC	Flame class	UL94-V0
Maximum voltage(with fuse)	1575V	Ambient temperature range	-40„+85„(IEC)
Contact resistance	‰0.25 mÎ	Upper limiting temperature	110„(IEC)
Contact material	Copper, Tin plated	Suitable cable cross sections	2.510mm2 /148AWG (4F1-154F3-15)
Degree of protection	IP68(1m,1H)	Suitable fuse size(mm)	1085 or 10/1485
Rated impulse voltage	12KV	Regulatory approval	TUV, CE
