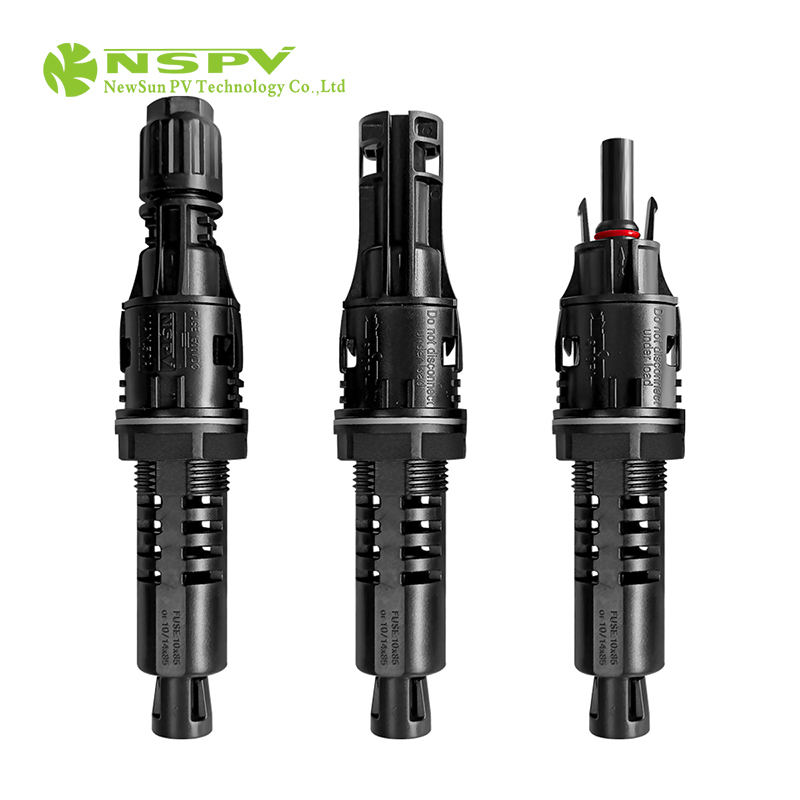

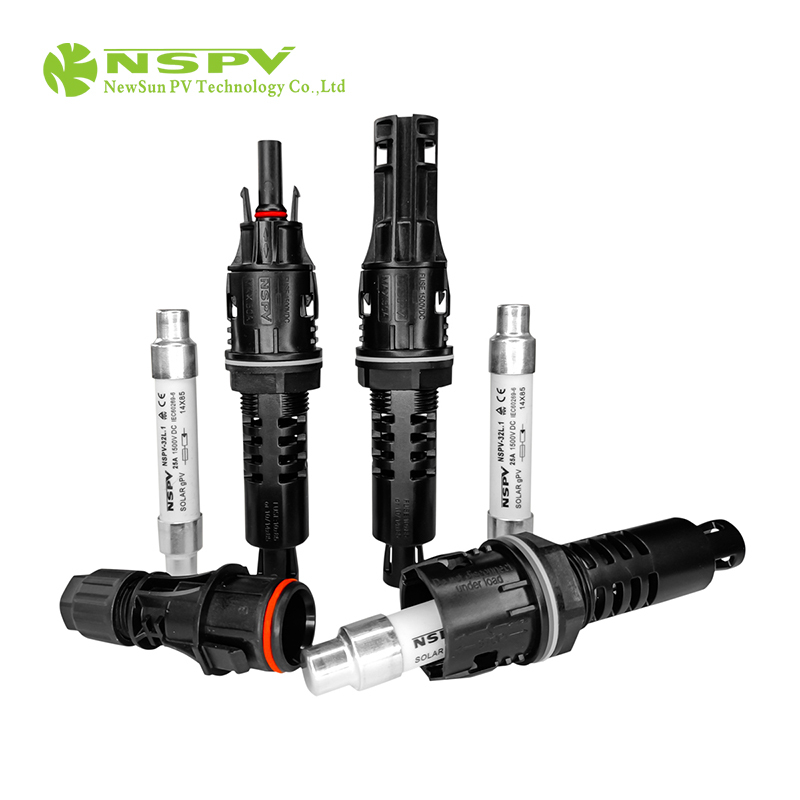

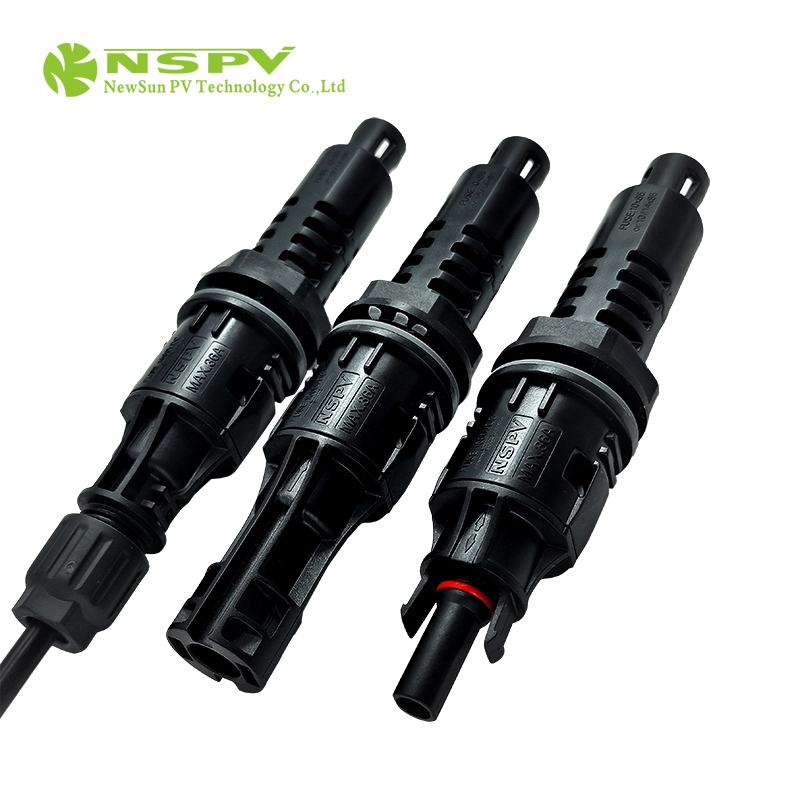

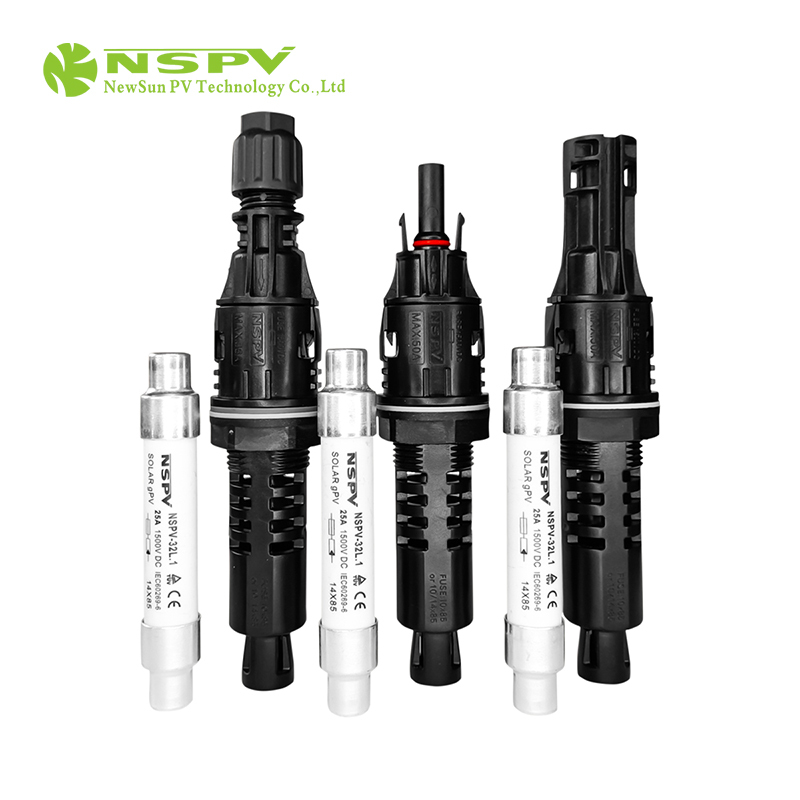

IP68 Waterproof 1500VDC 50A Solar Panel Fuse Connector TUV Fuse Connector
X
IP68 Waterproof 1500VDC 50A Solar Panel Fuse Connector TUV Fuse Connector Price And Quantity
- 7.78 - 9.78 USD ($)/Set
- 500 Set
- 7.78 USD ($)/Set
IP68 Waterproof 1500VDC 50A Solar Panel Fuse Connector TUV Fuse Connector Trade Information
- EXW
- Telegraphic Transfer (T/T)
- Contact us for information regarding our sample policy
- Asia Central America South America Western Europe Middle East Africa
- TUV
Product Description
1500VDC PV 4.0 Panel Fuse Connector 3 types
Features:
1500VDC, 50A; IP68; Low contact resistance; TUV certified; Suitable for 2.5-16sqmm cable; Suitable for fuse 10*85 or 10/14*85mm; Easy to replace fuse.
Model: 4PFC/4PFM/4PFF, Please inquire for details and each price excludes the fuse.
| Product specifications | |||
|---|---|---|---|
| Insulation material | PPE/PA | Fuse specifications | 1A-50A |
| Rated current(without fuse) | 50A | Safety degree | II |
| Rated voltage | 1500VDC | Flame class | UL94-V0 |
| Maximum voltage(with fuse) | 1575V | Ambient temperature range | -40„+85„(IEC) |
| Contact resistance | ‰0.25 mÎ | Upper limiting temperature | 110„(IEC) |
| Contact material | Copper, Tin plated | Suitable cable cross sections |
2.516mm2 /146AWG |
| Degree of protection | IP68(1m,1H) | Suitable fuse size(mm) | 10*85 or 10/14*85 |
| Rated impulse voltage | 12KV | Regulatory approval | TUV, CE |
